Pneutronics valve 5VDC 50 psi 3-way leads air SRS10-2


this is corporate surplus in new in bulk bag condition. this units exact details as labeled.

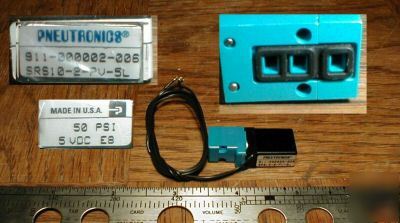

srs10-2-pv-5L 50psi 5vdc 911-000002-006 3way
product line spec sheed pdf format : parker.com/LIFESCIENCES/GRAPHICS/DATASHEETS/SRS_0228.PDF add a triple w in front of that. series quick overview from manufacturer.
* SRS - 10mm Manifold Mountable Plastic Solenoid Valve
* The 10mm SRS Series Plastic Solenoid Valve converts a digital electrical signal into a digital pneumatic output. The SRS Valve is constructed of engineering thermoplastics and non-corrosive metals to exceed the specifications demanded by critical applications in the life sciences.
* Media: Gases and select liquids
* Orifice Size: 0.030" with Cv = 0.017 , 0.050" with Cv = 0.035
* Pressure: 0-100 PSIG (0.030" orifice) , 0-70 PSIG (0.050" orifice)
* Voltage: 5, 12 or 24 VDC ± 10%
* Operating Temperature: 32 to 158° F (0 to 70° C)
* Elastomers: FKM (Fluoroelastomer)
* Wetted Materials: Crystalline Plastics - PPS; Hoechst Celanese Fortron , PBT; LNP ThermoComp
* Maximum Leak Rate: 0.016 SCCM (Bubbletight)
* Lubrication: None required
* Internal Volume: 0.0267 cubic inches
* Ports: Manifold Mount Gasket
* Power Requirement: 0.5, 1.0 or 2.0 watts (J/sec)
* Non-Corrosive Metals: 302 FR Stainless Steel , 430 FR Stainless Steel , CMI-B Core Iron , Electroless Nickel Plating
this units exact details as per mfg website: (if product varies in any way, blame them, thier typos..eheh)
* Part Number : 911-000002-006
* PRESSURE RATING 0-50 PSI (0-3.4 BAR)
* BODY CONNECTION Manifold Mount
* STEM/ENDPLATE CONNECTION Manifold Mount
* ELECTRICAL CONNECTION Wire Leads, Top
* SEAL MATERIAL Flouroelastomer
* TEMPERATURE RATING 0-70oC
