Cd esd-2000 electrostatic discharge simulator & probes
Electrostatic Simulator Test System
Charge Reservoir Electrostatic Discharge Simulator
with two Probe Guns (each rated 330 ohms, 150pF)
separate probe guns for air and contact discharge
With printed manual & 2 Hard Storage Cases

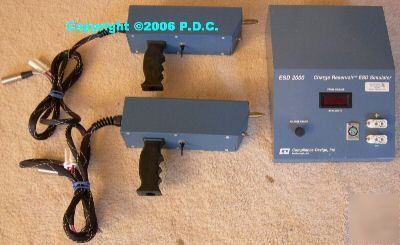

Comes as pictured with accessories, manual, and 2 storage cases. Works, meter indicates KV, pot adjusts voltage, all knobs and switches operate smoothly and are responsive. Produces a spark as seen in photos. In excellent condition since it has a padded storage case. Comes with power line cord. Here are some specs of the system:
Engineered to test for compliance with ESD standards. The ESD-2000 is the solution to manufacturer's concerns about system level immunity. Utilization of the latest ESD technology, including Compliance Design's Charge Reservoir, has yielded sub nanosecond rise times for contact discharge events in strict accordance with IEC standards. In addition, the ESD-2000 can easily produce either positive or negative discharges at voltages as high as 25kV in a variety of human models.
TECHNICAL SPECIFICATIONS (IN CONFORMITY WITH IEC STANDARDS)
* Discharge voltage V o (air-discharge): 2 -27 kV
* Discharge voltage V o (contact-discharge): 2 -9 kV
* Polarity: positive/negative
* Discharge capacitor Cs: 150 pF ± 10% (others available)
* Discharge resistor Rd: 330 ohms ± 10% (others available)
* Operating modes: single/repetitive discharges
* Test finger: conforms to IEC 801-2,1991
* Max. discharge energy: 50 mJ at 25 kV
* Rise time (air discharge): <1 ns for voltages <_8 kV
* Rise time (with contact adapter)0.7 -I ns
* First current peak (with contact discharge adapter) at voltage set to:
* Current pulse shape: conforms to IEC 801-2,1991
* Voltage indication accuracy (LED): ±5%
