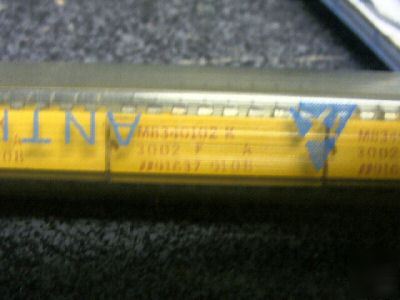

Resistor network,fixed,film
ELECTRICAL RESISTANCE - 30.000 KILOHMS
IDENTICAL VALUE RESISTOR QUANTITY - 8 EACH RESISTOR
RESISTANCE TOLERANCE IN PERCENT - -2.000 TO 2.000
POWER DISSIPATION RATING IN WATTS - 1.600 TOTAL NETWORK
AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER - 70.0
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER - 125.0
TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS - -100.0 TO 100.0
TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS - -55.0 TO 125.0
SCHEMATIC DIAGRAM DESIGNATOR - 1 ISOLATED ARRAY
INCLOSURE METHOD - ENCAPSULATED
STYLE DESIGNATOR - 220 DUAL INLINE
BODY LENGTH - 0.830 INCHES NOMINAL
BODY WIDTH - 0.270 INCHES NOMINAL
BODY HEIGHT - 0.135 INCHES MAXIMUM
TERMINAL TYPE - TAB, SOLDER LUG
RELIABILITY INDICATOR - NOT ESTABLISHED
TERMINAL LENGTH - 0.135 INCHES NOMINAL
TERMINAL WIDTH - 0.015 INCHES MINIMUM AND 0.022 INCHES MAXIMUM
TEST DATA DOCUMENT - 81349-MIL-R-83401 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-R-83401/2 GOVERNMENT SPECIFICATION
III UNPACKAGED UNIT WEIGHT - 1.5 GRAMS
(NON-CORE DATA) CUBIC MEASURE - 0.030 CUBIC INCHES
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-R-83401/2
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M8340102K3002GA
