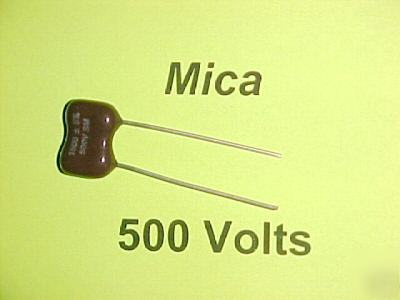

5000PF @ 500 volt dipped silver mica capacitors qty=5
* ...Always a Money Back Guarantee
On sale are package of five (5) new stock 5000 pf / mmfd at 500 Volts dipped Silver Mica Capacitors. These mica caps are manufactured from selected Indian ruby muscovite having optimum electrical characteristics. Copper-clad steel leads finished with a solder coating for excellent solderability. Epoxy dipped for superior heat, moisture, vibration and solvent resistance. Capacitance tolerance is +/- 5%. These 500 Volt Silver Mica Capacitors made by "brand name" SIMIC. Simic Electronics is a world renowned producer of high quality ISO certified silver mica capacitors. SIMIC mica capacitors are designed to meet the exacting physical and electrical requirements of the MIL-C-5 and RS-153 specifications. SIMIC silver mica capacitors were MIL approved and QPL listed as early as 1985 and all capacitors are manufactured under strict ISO 9002 quality systems.
CAPACITOR Specifications and Features
* Premium quality - manufactured from selected Indian ruby muscovite having optimum electrical characteristics.
* Copper-clad steel leads are finished with a solder coating for excellent solderability. Long 35mm straight radial leads for easy "under-chassis" installation in tube electronics.
* Excellent capacitor replacement where tolerance & capacitance stability and high reliability are required, such as in oscillator circuits; logic and transmission circuits, DC voltage blocking, filters, delay lines and pulse forming networks.
* Rated Working Voltage: 500 Volts DC. Test voltage 1000 volts DC.
* Epoxy dipped for superior heat, moisture, humidity, shock, vibration and solvent resistance.
* Stability over full life of equipment
* Low capacitance change with temperature.
* Wide operating temperature range:-55 to +135 C.
* Capacitance tolerance +/- 5%.
* Available in "hard-to find" pre WWII MMFD sizes for tube based electronics.
* Capacitance Range: All sizes 5 pF thru 5000 pF, namely: 5pf, 10pf, 15pf, 20pf, 22pf, 25pf, 27pf, 30pf, 33pf, 40pf, 47pF, 50pf, 68pf, 70pf, 82pf, 100pf, 110pf, 120pf, 150pf, 180pf, 200pf, 220pf, 250pf, 270pf, 300pf, 330pf, 360pf, 390pf, 400pf, 470pf, 500pf, 600pf, 680pf, 700pf, 750pf, 800pf, 820pf, 900pf, 910pf, 1000pf, 1500pf, 1800pf, 2000pf, 2200pf, 2500pf, 3000pf, 3600pf, 3900pf, 4000pf, 4700pf and 5000pf. For conversion purposes please note that 1000 pF = 0.001 uF. Also, PF and MMFD are the same.
* Case styles: DM15 for 5 pF thru 500 pF. DM19 for 600 pF and higher. MIL equivalent is CM05 and CM06 respectively.
