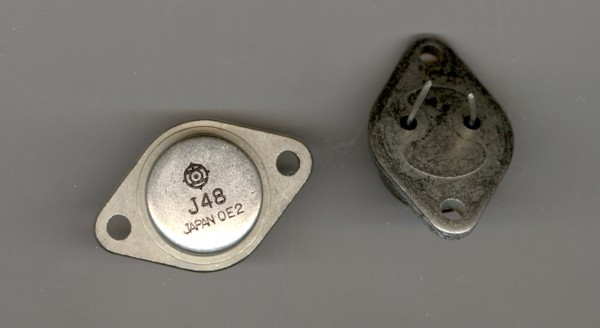

Transistor J48 nte 2998 electronics parts


IF WE ARE NOT ANSWERING YOUR EMAILS PLEASE
CHECK THE MESSAGE CENTER ........
Discover American Express eCheck
THANKS FOR VISITING D.O.Enterprises
(TC = +25°C unless otherwise specified)
DSX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200V
GSS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±14V
D . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8A
D(PK) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8A
C = +25°C), PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125W
Maximum Operating Junction Temperature, T
J . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +150°C
stg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −55° to +150°C
Thermal Resistance, Junction−to−Case, R
thJC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.0°C/W
(TC = +25°C unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit
Drain−Source Breakdown Voltage BV
DSX VGS = 10V, ID = 10mA 200 − − V
Gate−Source Breakdown Voltage BV
GSS VDS = 0, IG = ±100μA ±14 − − V
GS(OFF) VDS = 10V, ID = 100mA 0.15 − 1.5 V
Drain−Source Saturation Voltage V
DS(SAT) VGD = 0, ID = 8A, Note 1 − − 12 V
Drain−Source Cut−Off Current I
DSX VGS = 10V, VDS = 200V − − 10 mA
fs VDS = 10V, ID = 3A, Note 1 0.7 − 2.0 S
Note 1. Pulse Test: Pulse Width = 300
Electrical Characteristics (Cont’d):
(TC = +25°C unless otherwise specified)
Parameter Symbol Test Conditions Min Typ Max Unit
iss VDS = 10V, f = 1MHz − 734 − pF
Reverse Transfer Capacitance C
on VDS = 20V, ID = 5A − 120 − ns
