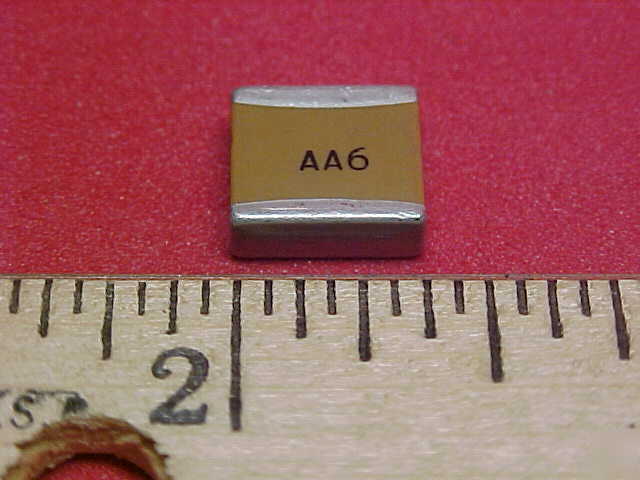

25PC 1UF 250V hv avx mlc chip capacitor smc -50°c+125°c
* Operating Temperature Range: -50°C to +125°C
* Manufacturer: AVX Corp. A KYOCERA GROUP COMPANY
* Data Sheet: http:// /docs/Catalogs/aphvc.pdf
- High value, low leakage and small size are difficult parameters to obtan in capacitors for high voltage systems. AVX special high voltage MLC chips capacitors meet these performance characteristics and are designed for applications such as snubbers in high frequency power converters, resonators in SMPS, and high voitage coupling DC blocking. These high voltage chip designs exhibit low ESRs at high frequencies. Larger physical sizes than normally encountered chips are used to make high voitage chips. These larger sizes require that special precautions be taken in applying these chips in surface mount assemblies. This is due to differences in the coefficient of thermal expansion (CTE) between the substrate materials arid chip capacitors. Apply heat at less than 4°C per second during the preheat. The preheat temperature must be within 50°C of the peak temperature reached by the ceramic bodies through the soldering process. Chips 3640 to use reflow soldering only. Capacitors may require protective surface coating to prevent external arcing. -
