Hubbell twist lock receptacle 20A 125VAC or vdc HBL2310
Industrial - Construction Supplies
Residential & Commericial Remodeling Projects

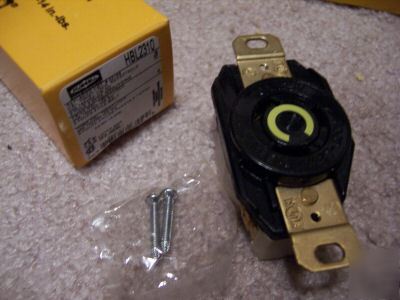

Hubbell HBL2310 Twist-Lock Receptacle
Hubbell HBL2310 Twist-Lock Receptacle Features:
• Product Type: Twist-Lock Devices
• Product Item: Single Receptacle
• Wiring Scheme: 2 Pole, 3 Wire Grounding
• Terminal Clamp Material: .040" (1.0 ) Brass
• Terminal Screw Material: #10-32 Bronze (White finish on neutral screw when used)
• Ground Screw Material: #10-32 Bronze (Green)
• Contact Spring Material: .040" Brass
• Mounting Screw Material: Steel-zinc-plated
• Cover (Top) Material: Black Nylon
• Base Material: Nylon Polyester
• Ground Contact Material: .040" Brass
• Bridge (Mounting Strap) Material: .050" Brass
• Back Plate Material: .040" Brass
• Auto Ground Clip Material: Stainless Steel
• Dielectric Voltage Withstand: 2,000V minimum.
• Current Interrupting: Certified for current interrupting at full rated current.
• Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
• Terminal Accommodation: #14 to #8 AWG Copper Only
• Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
• Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
• Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
