New 15000V .45AMP high voltage diodes X4 $1 shipping
15,000V @ 0.45AMP Diodes for High Voltage
These are prime, brand new and perfect.
You get 4 HV diodes in this listing.

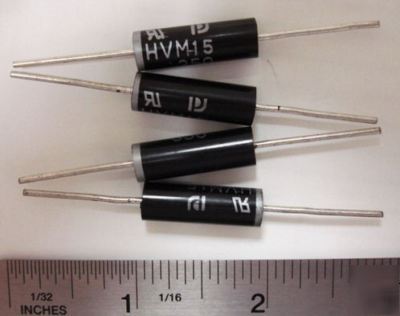

Part# Cross Reference H2523-15 MADE BY VARO or OEM Bulk packaged as pictured...
Actual Part number by manufacturer = HVM15 / HV15-01-CL
15KV Rated Operating Voltage (+5% max before failure)
350mA to 450mA at 100% duty cycle (usage) - no failure
Peak Forward surge current = (ifsm) 50amps at 8.3mS
Operating Temperature Tj = -20 to 125 degrees C
Epoxy: UL 94V-0 rate flame retardant
Lead: MIL-STD- 202E, Method 208 guaranteed
Polarity: Color band denotes cathode end
They are perfect for tesla coil experiments, high voltage power supplies, voltage multipliers, marx generators, converting high voltage plasma ac into dc, Lasers, capacitor charging circuits, microwave ovens or microwave pulse power supplies, etc... You can make a high voltage full wave bridge rectifier with 4 diodes, that is why we include 4 of them.
Each diode is rated 8.3ms millisecond at 750KW (15,000Volts)
Each diode measures (max): .29" diameter X 0.88" Base length / 2.69" Total length. Leads are solid copper, tinned and are roughly 0.05" thick.
We have a limited supply of these so stock up at this great price.
