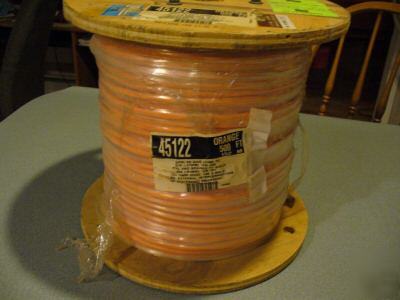

500FT -- alpha extra guard 4, shielded 2 pair -- orange
Xtreme Performance In High/Low Temperatures With High Resistance To Oils, Chemicals, Solvents, Fuels And Where Low Halogenated Cables Are Required
* High Performance TPE (Thermoplastic Elastomer) Insulation And Jacket For Superior Cable Performance In Both High And Low Temperature Applications From Cold At -50°C (-58°F) To Heat at +125°C (257°F)
* Three Times The Low Temperature Flexibility Of Ordinary PVC
* High Resistance To Oils, Solvents, Chemicals And Fuels
* Outstanding Ultraviolet Light Stability In All Jacket Colors
* Pennsylvania Bureau Deep Mine Safety Approved For Mine-Wide Monitoring Systems
* UL Rated Type TC 600 Volt And Type PLTC 300 Volt For Cable Tray Applications
* Low Halogen Content For Safety In Confined Spaces
* Xtreme Performance Against EMI/ RFI When Specified With SUPRASHIELD®, Alpha’s Proprietary, High Performance Shielding System
* Wood, Paper, Pulp, Plant Operations
* Mining Instruments and Controls
* Petrochemical Process Controls
* Conductor: Stranded Tinned Copper
* Insulation : Color-Coded Thermoplastic Elastomer
* SUPRASHIELD®: Aluminum/Polyester/Aluminum Foil with Stranded Tinned Copper Drain Wire Equal in Size to Insulated Conductors of Cable plus 70% Overall Braid of Tinned Copper
* Jacket: Thermoplastic Elastomer
* ANSI/UL-1581 Vertical Tray Flame Test
* Pennsylvania Bureau of Deep Mine Safety Approved P-MWMS-1-85
