Square d custom power style qed switchboard 1600A


SQUARE D CUSTOM POWER STYLE QED SWITCHBOARD
1600A 208Y/120 VAC 3PH 4W 60HZ
SUITABLE FOR USE AS SERVICE ENTRANCE EQUIPMENT
Short Circuit Current Rating: 200KA RMS SYM
Incoming: Bottom Right/Cable Fed
Bussing: Plated AL Bus/UL 891 Heat Rise

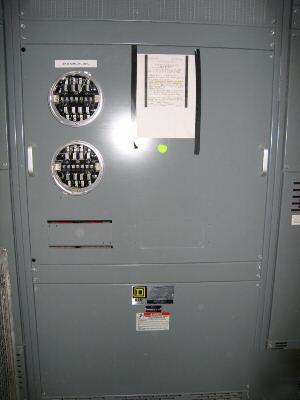

Hot Sequence Utility: Pacific Gas & Electric Co.

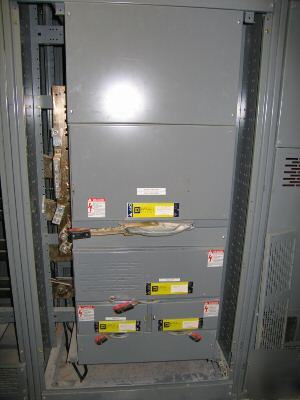

M1: Fixed Mounted Bolted Pressure SW W/Class L Clips
Square D Type BP Per UL 977 Standards - 1600A/3P BP

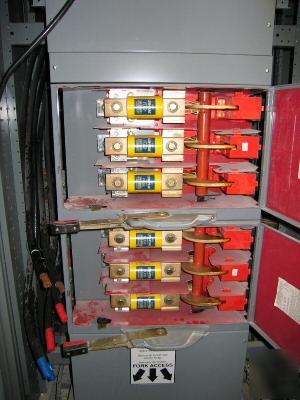

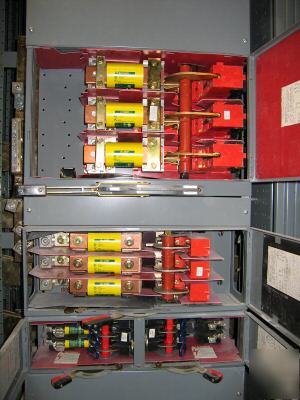

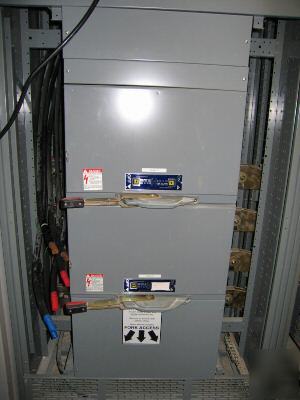

[2] QMB367W – Fusible Switch 800A 600V 3P
[1] QMJ366 – Fusible Switch 600A 600V 3P
[1] QMJ365 – Fusible Switch 400A 600V 3P
[1] QMJ363T – Fusible Switch 100A 600A 3P

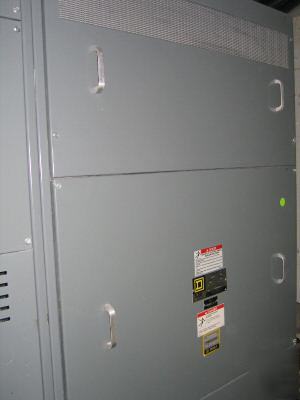

Enclosure data: Nema Type 1 Free Standing
Reduced Height All Sections; Standard ANSI 49
Section 1: 75”H x 42”W x 19.5D
Section 2-3: 75”H x 36”W x 19.5”D
Section 4: 75”H x 36”W x 14.5”D
