Agilent hp 8924C 30-1000MHZ cdma communications test se

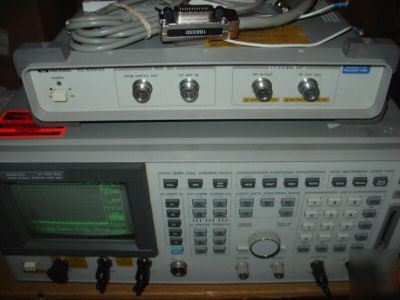

Agilent HP 8924C 30-1000MHz CDMA Communications Test Set with HP 83236B PCS Interface.

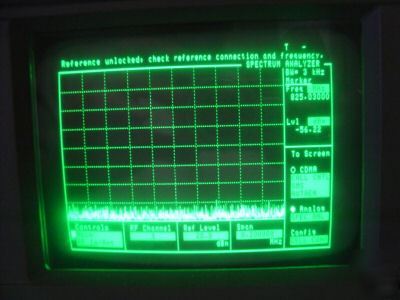

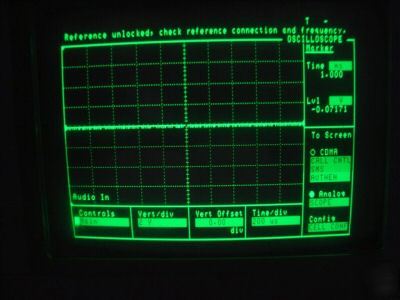

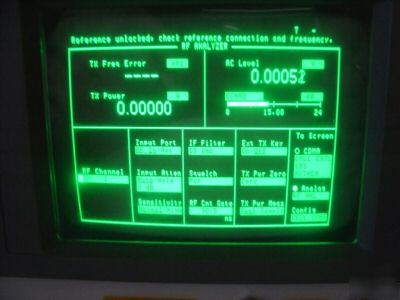

*Spectrum Analyzer : ~1GHz *Signal Generator *Audio Source *RF Analyzer *AF Analyzer *Oscilloscope *Signaling Encoder/Decoder *CDMA Test Set Check

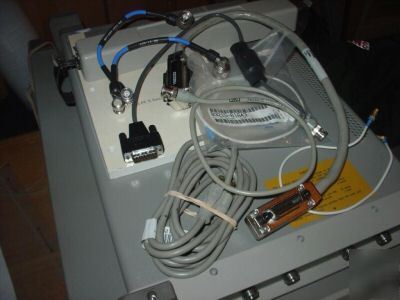

(1) HP 10833D ...cable, HPIB 0.5 (1.6ft)
(2) HP 83236-61603....cable, N (M)-BNC (M) (RT Angle)
(2) HP 83215-61643...MA-SMC cable, 60 cm
(1) HP 8120-1839.... cable BNC 24" 50 OHm
(1) E9625A....connector BNC. TEE
IF YOU ARE INTERESTED IN OPTION 060 (60 WATT RF INPUT) kit for the 8924C units. I can help to order the
option 060 input attenuator and you will need a cal card to program the 8924C. You can use this card to program HP 8924C units.
The Agilent Technologies 8924C CDMA mobile station test set provides the key set of measurements to manufacture high quality dual-mode CDMA mobile telephones in a single box. Acting as a calibrated, high-performance CDMA base station, the 8924C verifies not only the parametric performance, but also the functional aspects of phone performance. The 8924C is optimized to provide high accuracy measurements with the speed required for efficient manufacturing. These characteristics result in superior performing CDMA mobiles that cost less to manufacture. In addition to its CDMA functionality, the 8924C includes full AMPS, NAMPS, and TACS analog phone test capability. With the 8924C, you save space and cost by making both analog cellular and CDMA digital cellular measurements with the same box.
* High accuracy and speed for manufacturing test
* Analog and IS-95 CDMA digital phone test capability
* Both functional and parametric phone testing
* CDMA base station simulator
The Agilent Technologies 83236B PCS Interface is a cellular to PCS frequency translator. When combined with Agilent Technologies TDMA and CDMA RF test sets, it provides PCS test solutions for your TDMA and CDMA PCS phones.
* 1710 to 1990 MHz frequency coverage
* Serial interface bus for Agilent 8920B and Agilent 8924C, 8924E firmware control options
* Fast CDMA power measurements
HP 8924C Service Monitor with Spectrum Analyzer and Tracking Generator. Agilent HP 8924C CDMS Mobile Station Test Set.
The Agilent Technologies 8924C CDMA mobile station test set provides the key set of measurements to manufacture high quality dual-mode CDMA mobile telephones in a single box. The 8924C is optimized to provide high accuracy measurements with the speed required for efficient manufacturing. These characteristics result in superior performing CDMA mobiles that cost less to manufacture. In addition to its CDMA functionality, Specifications:
Signal Generator (Analog Mode) RF Frequency Range: 250 kHz to 1000 MHz
Output RF In/Out Connector Level Range: -137 to -9 dBm into 50 ohms
Level Accuracy: +/- 1.2 dB (level >/= -127 dBm)
Reverse Power: 3 watts continuous Duplex Out Connector Level Range: -127 to +7 dBm into 50 ohms
RF Analyzer (Analog Mode) Frequency Measurement Range: 400 kHz to 1000 MHz
RF Power Measurement (RF In/Out connector only.) Frequency Range: 30 MHz to 1000 MHz
Measurement Range: 0.1 mW to 3 W continuous
Accuracy: +/- 5% of reading +/- 0.01 mW from 15 degrees C to 35 degrees C
AF Analyzer (Analog Mode) Frequency Measurement Measurement Range: 20 Hz to 400 kHz
Accuracy: +/- 0.02% + resolution + reference oscillator accuracy AC Voltage Measurement
Measurement Range: 0 to 30 Vrms Accuracy: (20 Hz to 15 kHz, >/= 1mV):+/- 3% of reading
SINAD Measurement Fundamental Frequency Range: 300 Hz to 10 kHz +/- 5%
Accuracy: +/- 1 dB for frequencies from 300 to 1500 Hz
CDMA Call Processing Functionality (CDMA Mode) CDMA Channels: Additive White Gaussian Noise
Sector A includes the following channels: Pilot Channel, Sync Channel, Paging Channel, Traffic Channel, and OCNS Channel
Sector B includes the following channels: Pilot Channel, Traffic Channel, and OCNS Channel
Frequency Range: 501 MHz to 1000 MHz
Composite Signal Output Level Range: RF In/Out: -127 dBm/1.23 MHz to -20 dBm/1.23 MHz
Duplex Out: -127 dBm/1.23 MHz to -4 dBm/1.23 MHz
CDMA Analyzer (CDMA Mode) CDMA Average Power Measurement Input Frequency Range: 30 MHz to 1000 MHz
Measurement Range: -10 dBm to +40 dBm,
RF In/Out only CDMA Channel Power Measurement Measurement Range: -50 to +10 dBm/1.23 MHz
CDMA Modulation Measurement Input Frequency Range: 4 MHz to 1000 MHz CDMA Frame Error Rate Measurement Method: Data loopback per Service
http://cp.literature.agilent.com/litweb/pdf/5968-4094E.pdf
http://cp.literature.agilent.com/litweb/pdf/5965-5625E.pdf

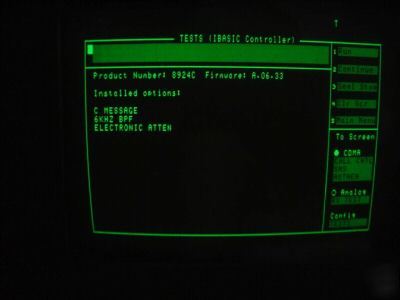

The items are in excellent cosmetic shape, removed from service in working condition. Passed all self tests. Tested, Calibrated. Warranteed not to be DOA. The units come with power cords, User's Guides, manuals, cables and accessories.
