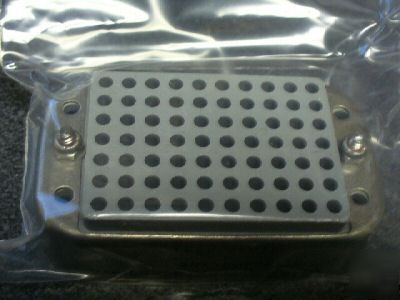

Connector,plug,electrical
BODY STYLE - 18A HOOD, TOP OPENING W/CLAMP
OVERALL LENGTH - 2.745 INCHES MINIMUM AND 2.755 INCHES MAXIMUM
OVERALL HEIGHT - 3.562 INCHES MAXIMUM
OVERALL WIDTH - 1.526 INCHES MINIMUM AND 1.536 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - JACKSCREW-SOCKET
THREADED DEVICE TYPE - COUPLING FACILITY
THREAD SERIES DESIGNATOR - UNC
NOMINAL THREAD SIZE - 0.164 INCHES
CONNECTOR CABLE STRAIN RELIEF METHOD - CABLE CLAMP
CABLE ENTRANCE DIAMETER - 1.482 INCHES MINIMUM
SHELL TYPE - HOOD, TOP OPENING
SHELL MATERIAL - STEEL CORROSION RESISTING
SHELL MATERIAL DOCUMENT AND CLASSIFICATION - QQ-S-763 FED SPEC SINGLE MATERIAL RESPONSE
SHELL SURFACE TREATMENT - PASSIVATE
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - MIL-F-14672 MIL SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD - JACKSCREW AND SHELL
SHELL GUIDE TYPE AND LOCATION DESIGNATOR - A PIN
INCLUDED CONTACT QUANTITY - 70 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
(NON-CORE DATA) JACKSCREW TYPE AND LOCATION - FEMALE LEFT-HAND AND MALE RIGHT-HAND
