Numatics mark 8 - 24VDC solenoid valve on manifold

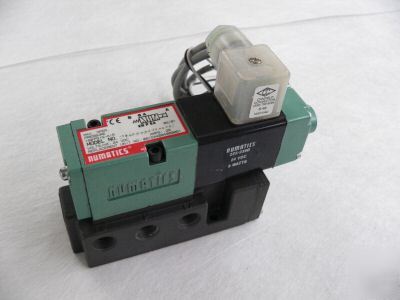

Numatics - Mark 8 Solenoid Valve mounted on manifold
24VDC 0.26 Amp Solenoid, model 225-239B 24VDC 6 Watts
Valve model number 081SA4004000061 -
Mark 8, 1/8" single direct solenoid spring return, 2 position 4-way porting, manifold block with npt cylinder ports, DIN plug in wiring.
http:// /product/valves/mk8.asp
http:// /deliverables/catalogs/valves/mk8.pdf
Mark 8 valves have a plug-in base or manifold, a plug-in solenoid and an optional plug-in speed control sandwich. The unit to base electrical plug permits instant valve unit replacement without disconnecting piping or wiring.
* Port Sizes: 1/8, 1/4 NPTF & G
* 5 ported, 2 and 3 position, 4-way, spool & sleeve
* Flow Capacity: 37 to 46 SCFM @ 80 PSIG / 790 to 985 NI/m @ 6 bar
* Operating Pressure Range: 28" Hg. Vacuum to 150 PSIG / Vacuum to 10 bar
* Temperature Range (Ambient): -10°F to +115°F / -23°C to +46°C
* Fieldbus Electronics and I/O Capable
* Plug-in solenoid with indicator light
* Unlubricated or lubricated service
* Integral speed control available
* Integral regulators available
