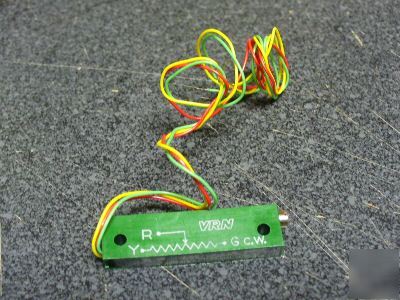

Resistor,variable,nonwire wound,nonprecision
ELECTRICAL RESISTANCE PER SECTION - 25.0 KILOHMS SINGLE SECTION
RESISTANCE TOLERANCE PER SECTION IN PERCENT - -10.0 TO 10.0 SINGLE SECTION
STANDARD TAPER CURVE PER SECTION - A SINGLE SECTION
TEMP COEFFICIENT OF RESISTANCE PER SECTION IN PPM PER DEG CELSIUS - -250.0 TO 250.0 SINGLE SECTION
POWER DISSIPATION RATING PER SECTION IN WATTS - 0.75 FREE AIR SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT FULL RATED POWER - 85.0 SINGLE SECTION
AMBIENT TEMP IN DEG CELSIUS PER SECTION AT ZERO PERCENT RATED POWER - 150.0 SINGLE SECTION
BODY STYLE - 26B RECTANGULAR W/MOUNTING HOLES/SLOTS
BODY LENGTH - 1.250 INCHES NOMINAL
BODY WIDTH - 0.190 INCHES NOMINAL
BODY HEIGHT - 0.315 INCHES NOMINAL
LATERAL DISTANCE BETWEEN MOUNTING HOLE CENTERS - 1.000 INCHES NOMINAL
SHAFT STYLE - 3C ROUND, SLOTTED
SHAFT DIAMETER - 0.115 INCHES NOMINAL
SHAFT LENGTH - 0.070 INCHES NOMINAL
ROTARY ACTUATOR TRAVEL IN ANGULAR DEG - 6120.0 MINIMUM AND 9720.0 MAXIMUM
ACTUATOR TRAVEL CONTROL FEATURE - CLUTCH
MOUNTING METHOD - UNTHREADED HOLE
MOUNTING FACILITY QUANTITY - 2
MOUNTING HOLE DIAMETER - 0.093 INCHES NOMINAL
TERMINAL TYPE AND QUANTITY - 3 WIRE LEAD
RELIABILITY INDICATOR - NOT ESTABLISHED
TEST DATA DOCUMENT - 81349-MIL-R-22097 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-R-22097/2 GOVERNMENT SPECIFICATION
III OVERALL LENGTH - 1.320 INCHES NOMINAL
III OVERALL HEIGHT - 0.315 INCHES NOMINAL
III OVERALL WIDTH - 0.190 INCHES NOMINAL
III CUBIC MEASURE - 0.079 CUBIC INCHES
III FRAGILITY FACTOR - MODERATELY RUGGED
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-R-22097/2
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - RJ12CL253
