Hp agilent 779D directional coupler 1.7 - 12.4 ghz

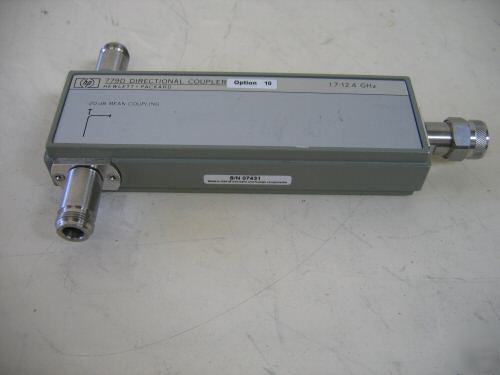

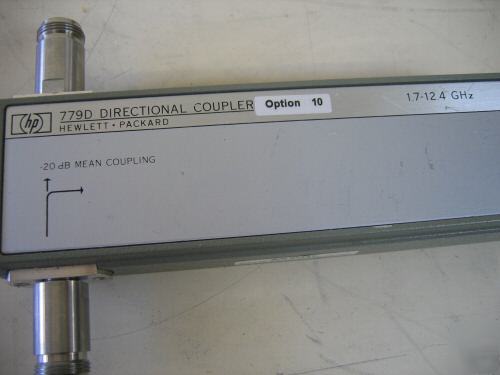

HP Agilent 779D Directional Coupler, 1.7 - 12.4 GHz w/ option 010
* Description: The HP Agilent 779D is a Coaxial Dual Directional Coupler that is designed for swept measurements in the 1.7 to 12.4 GHz range. The HP Agilent 779D offers high directivity and mean coupling accuracy of plus or minus 0.5 dB which makes the HP 779D ideal for reflectometer applications. The auxiliary arms track very closely, making this coupler particularly useful for reflectometers driven by sweep oscillators such as the Agilent 8350B. Other specifications and features of the 779D include:
* Excellent mean coupling accuracy
* Frequency Range: 1.7 to 12.4 GHz
* Nominal Coupling and Variation: 20 ±0.75 dB
* Directivity: >30 dB for 1.7 to 4 GHz, >26 dB for 4 to 12.4 GHz
* Power Rating Average, Peak: 50 W, 250 W
* Working Condition: Presumed Good but Untested
* Other Comments / Notes: At the time of this listing, we have two of these available, both in the same condition. Both have the following option:

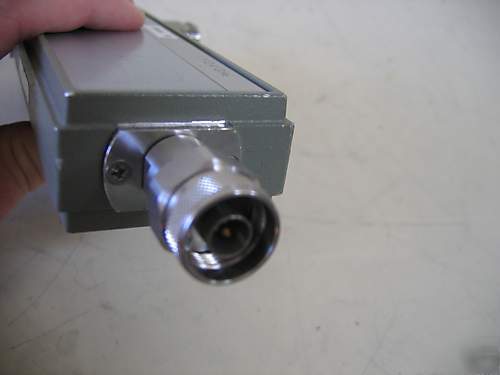

* 010: N-Female input, N-male ouput.
* Warranty: Rest assured that your purchase includes a 3-day DOA Guarantee. If the item is DOA, you will need to notify us within 3-days of receipt. Item(s) must be returned in the same condition as received within 7 days of receipt. (See below for further details).
We strongly recommend that you properly pack and insure the package against loss or damage. It is ultimately your responsibility that your returned product arrives at our location within the allotted return time frame in the same condition it was sent.
