Brushed dc motor with controller and remotes

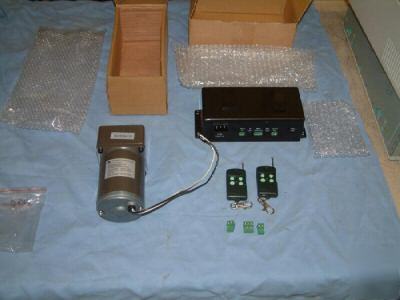

Brushed DC Motor with Controller and Remote Controls
This is a brand new heavy-duty brushed DC motor. It was originally used in a LCD/Plasma flatscreen television lift. This motor is capable of lifting 250 lbs. This motor will make a great start for many great projects, such as TV lift, electric carts, robotics and more.
This is the website address of the company that made the lift, they went belly under :( check out the animated video of the lift in nice cabinets. Cool, huh? Giving you any good ideas? Thats what I am hoping. Sitalift website
Motor and Controller Specs* Motor - Part # 76ZY130-65
* DC Voltage - 130Volts - Motor can be run from 20 to 330volts DC
* website info => http:// /motor/brushed.pdf
The controller has 4 inputs and 1 output
* Motor control up - in -(this signal - normally open - when closed stops the motor)
* Motor control down - in - (this signal - normally open - when closed stops the motor)
* Remote Control 4 Buttons - (3 active - 1 motor up - 2 motor down 3 stop)
* 136Volts DC - out - (connects directly to the motor - controls the turning of the motor)
* The controller has 3 LEDs - (1 Motor up light - 2 Motor Down light - 3 Power on light)
Basic SchematicBasic Schematic
* 3 Connectors - 1 for the motor - 2 for the limit switch inputs
* 7 Days - You have 7 days after the item is delivered to "Check It Out"
* If the Item does not work as described, contact me regarding the return.
No International orders at this time. This includes Canada and Mexico.
