Festo dng-50-100-ppv-a-S6 standard cylinder

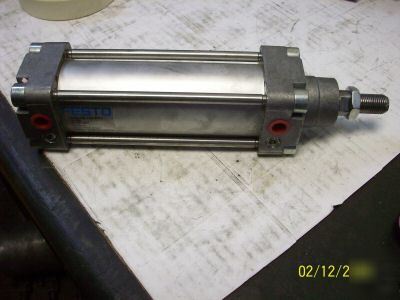

FESTO DNG-50-100-PPV-A-S6 STANDARD CYLINDER
Cushioning PPV: Pneumatic cushioning adjustable at both ends
Conforms to standard ISO 15552 (previously also VDMA 24652, ISO 6431, NF E49 003.1, UNI 10290)
Position detection For proximity sensor
Variants Single-ended piston rod
Operating pressure 0.6 - 10 bar
Mode of operation double-acting
Operating medium Dried compressed air, lubricated or unlubricated
Corrosion resistance classification CRC 2
Ambient temperature -20 - 80 °C
Authorisation Germanischer Lloyd
Theoretical force at 6 bar, return stroke 990 N
Theoretical force at 6 bar, advance stroke 1,178 N
Additional weight per 10 mm stroke 50 g
Basic weight for 0 mm stroke 1,400 g
Mounting type with accessories
Materials information for cover Aluminium
Materials information for seals NBR
Materials information for piston rod High alloy steel
Materials information for cylinder barrel Wrought Aluminium alloy
