New a. o. smith E465V1 20HP electric motor

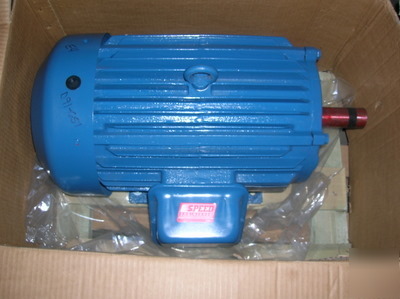

A. O. Smith E465V1 20HP electric motor
This is a new motor not refurbished or reconditioned
A. O. Smith retail price $1,619
Frame - 256T-Time Rating - CONT
RPM - 1765 -Ambient (C) - 40.00
Nema Design - B-Power Factor - 82.6
Efficiency - 93.0 -Nema Code Letter - G
Insulation Class - F-Enclosure - TEFC
Outline Drawing - 18749601-001-Drv. Bearing - 210
Conn. Diagram - NA-Non-Drv. Bearing - 208
Performance Characteristics:-Tested Voltage - 575.00
Percent Load - 1.15 - 100% - 75% - 50% - 25%
Efficiency (%)- 92.9 - 93.1 - 91.7 -89.8 - 83.8
Power Factor (%) -91.4 - 82.5 - 67.7 - 50.3 - 29.7
Amps - 20.30- 19.50 - 18.10- 16.60 - 15.00
Speed (RPM) - 1770 - 1774 - 1781 - 1788 - 1794
Full Load Torque (Lb-Ft): 59.2 - L.R. Torque (% F.L.):250%
L. R. Amps: 123.00 - B.D. Torque (% F.L.):258%
No Load Amps: -14.4 - Temp Rise @ Full Load (C): 58
