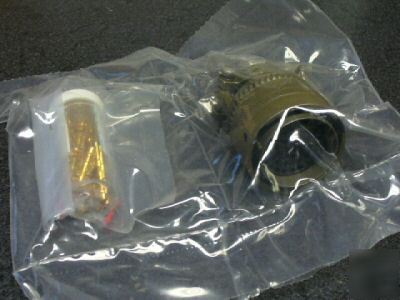

Connector,plug,electrical
BODY STYLE - 11A STRAIGHT SHAPE, INTERNAL COUPLING W/STRAIN RELIEF
BODY LENGTH - 2.830 INCHES MAXIMUM
OVERALL DIAMETER - 1.777 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - BAYONET LATCH
CONNECTOR CABLE STRAIN RELIEF METHOD - CABLE CLAMP
CABLE ENTRANCE DIAMETER - 0.657 INCHES MAXIMUM
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD - KEY, MULTIPLE KEY GROOVE
CONTACT POSITION ARRANGEMENT STYLE - CQAF 24-61 SINGLE MATING END
INCLUDED CONTACT QUANTITY - 61 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT REMOVABILITY - REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE - ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS - 600.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT - GOLD AND COPPER SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE - CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL LOCATION - BACK SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION - MOISTURE RESISTANT AND SALT WATER RESISTANT AND VIBRATION RESISTANT
TEST DATA DOCUMENT - 81349-MIL-C-26482 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-C-26482 GOVERNMENT SPECIFICATION
III PRECIOUS MATERIAL AND WEIGHT - 0.061 GOLD GRAINS, TROY
III PRECIOUS MATERIAL AND LOCATION - CONTACT SURFACES GOLD
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-26482
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MS3126F24-61PW
