New pneumatic actuator valve RC260 moore valvepac

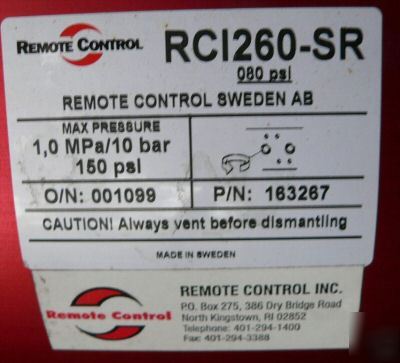

Brand New Remote Control Spring Return Pneumatic Actuator Valve RC260-SR or RCI260-SR
RC Compact pnewmatic actuators are intended for on-off and proportional control on quarter turn valves. features a modern scotch yoke. The RC260 has two pistons, with a single acting spring return. Can be arranged for valves to Fail Close or Fail Open. Designed for filtered dry air or inert gas applications, max working pressure of 150 psi.
Actuator is controlled by a Moore Series 760 ValvePac Intelligent Valve Control. The 760 is a cam characterized, double acting pneumatic controller accepting a 3-15 or 4-20 mA input signal to convert to a pneumatic output to position the valve actuator.
Comes with Installation and Service Manual
