Thomson micron NTR34-001 right angle precision gearhead
* Peak Torque = 493 in-lb (56 Nm)
* NEMA 34, 3.54†(90 mm) square RediMount input flange.

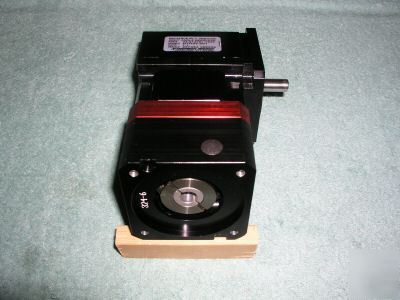

* This has a motor adapter plate that is marked 324-6 and is 1.74†long
* Not including the adapter plate, the distance from the mounting flange face to the centerline of the output shaft is 3.99†(101 mm) and the overall length = 5.76†(146 mm).
* This has a 3.25†(82.6 mm) square output flange with a 2.875†(73.03 mm) centering diameter and 0.5†(12.7 mm) diameter output shaft with 1/8†(3.2mm ) wide keyway (key not included).
This came in a lot of spare parts so it has a few tiny light cosmetic marks on the body, but the shaft and all of the mounting surfaces are spotless. This unit is also clean.

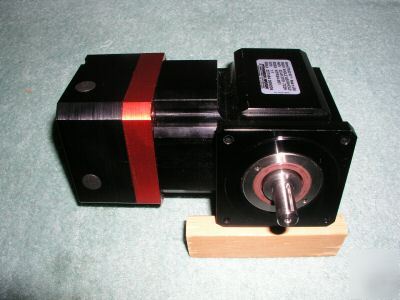

* The picture shown is the actual item(s) being sold and everything that is included is shown or listed in the ad.
* Unless noted in the ad, I securely package all items and double box any item in OEM packaging.
