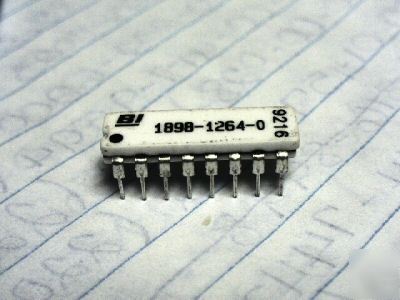

Resistor network,fixed,film
ELECTRICAL RESISTANCE - 0.100 OHMS
IDENTICAL VALUE RESISTOR QUANTITY - 3 EACH RESISTOR
RESISTANCE TOLERANCE IN PERCENT - -5.000 TO 5.000
POWER DISSIPATION RATING IN WATTS - 1.500 TOTAL NETWORK
AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER - 25.0
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER - 125.0
TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS - -200.0 TO 200.0
TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS - -55.0 TO 125.0
SCHEMATIC DIAGRAM DESIGNATOR - 4 BALANCED LADDER NETWORK
INCLOSURE METHOD - ENCAPSULATED
STYLE DESIGNATOR - 220 DUAL INLINE
BODY LENGTH - 0.830 INCHES NOMINAL
BODY WIDTH - 0.270 INCHES NOMINAL
BODY HEIGHT - 0.200 INCHES MAXIMUM
TERMINAL TYPE - TAB, SOLDER LUG
RELIABILITY INDICATOR - NOT ESTABLISHED
TERMINAL LENGTH - 0.135 INCHES NOMINAL
TERMINAL WIDTH - 0.020 INCHES NOMINAL
TEST DATA DOCUMENT - 15280-43-055851 DRAWING
III UNPACKAGED UNIT WEIGHT - 1.500 GRAMS
(NON-CORE DATA) CUBIC MEASURE - 0.045 CUBIC INCHES
