Siemens vfd / spindle SED2-7.5/42X 10HP 600V hv ac

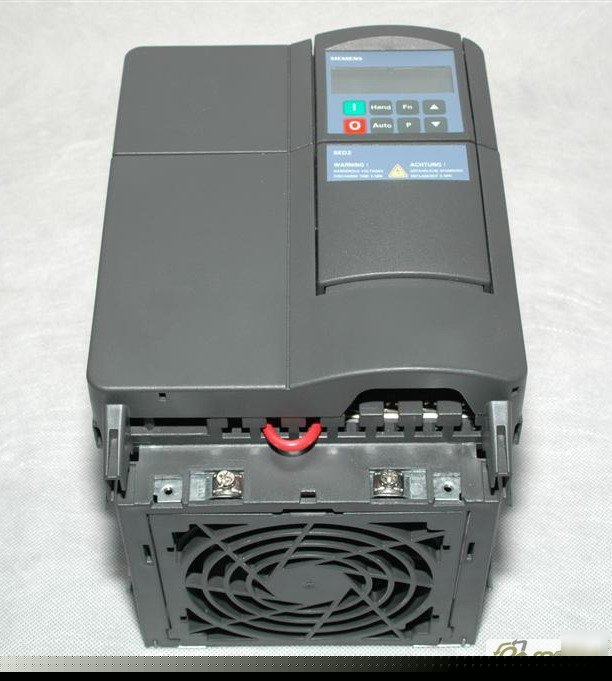

SIEMENS VFD / Spindle SED2-7.5/42X 10HP 600V HV AC
SIEMENS Variable Frequency Drive / Spindle SED2-7.5/42X 10HP 600V HV AC VFD
Condition: Used. Like new condition. Tested.
The item pictured may not be the same as the one sold, but they all are guaranteed to be in working and in good cosmetic condition. (satisfaction guarantee)
Variable frequency HVAC drive / spindle
Click to see more items from Redrive Inc.
From a global leader in drives technology and innovation, now comes a drive specifically configured for HVAC applications. The SED2 variable frequency drives from the Siemens HVAC Products Division. Incorporating the latest advancements in IGBT technology, the SED2 is a PWM drive packed with all the standard features expected in a drive designed for HVAC variable torque applications. Many more unique design features make this variable frequency drive truly advanced.
All the Features You Would Want From an Advanced HVAC Variable Frequency Drive
Built-in SBT P1 and JCI N2 (Metasys®) building automation system protocols for easy network integration
Unique low harmonics design minimizing the need for external line reactors
Built-in PID for fast and accurate pressure control
Pump controller staging/cascading for constant pressure, constant flow applications
Multi-level program access
Belt failure detection with or without an external sensor
Essential service mode for critical applications requiring continuous, uninterruptible operation
Accepts a wide variety of digital and analog I/O types, including direct Ni 1000 sensor level inputs
One common interface throughout all power ranges
Optional Advanced Operator Panel (AOP) for uploading/downloading of parameters
Full form C relay contacts for digital outputs
SED2 Operation and Maintenance Manual
500 - 600VAC (3-Phase) 12.6Amp 47-63Hz
IP20 (NEMA Type 1 with protective shield and gland plate installed); IP54 (NEMA Type 12)
Linear V/f, parabolic V/f (fan curve); flux current control (FCC) low-power mode
6: fully programmable and scalable isolated digital inputs, switchable
2: 0 to 10VDC, 0/4 to 20 mA, can also be configured as digital inputs or Ni1000 input
RS-485, SBT-P1; JCI-N2, Siemens USS bus (optional Modbus, LON)
2: programmable (0/4 to 20 mA)
24-48 hours turnaround time for 95% of repairs
30 days limited warranty and support
Exchange option available for repair price
Optional Extended Warranty available
All units will be tested with suitable equipment and repaired by professionals
