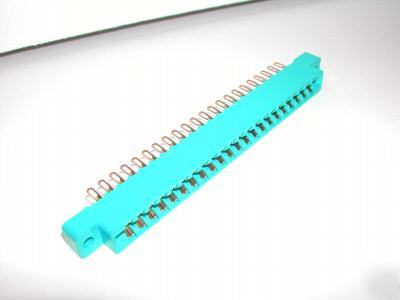

New vector R644 card edge connector 44 pins solder tail
GENUINE VECTOR #R644 EDGE CONNECTOR FOR PLUGBOARD PROTOTYPING BOARD
* FOR USE WITH THE VECTOR 3677 PLUGBOARDS
Vector Electronics & Technology
Connector, Edge; Phosphor Bronze (Contact); Flush; 4.360; 3.596; 4.032 in.
For use with RETMA (EIA) based VectorPakâ„¢ subracks, the R600 series wire-wrap and solder tail edge card connectors for 0.062" thick PCB's are designed for low insertion force, minimum wear on PlugBordâ„¢ circuit board edge contacts. Mating contacts are gold/nickel plated for reliability. Highly efficient, 30 mV maximum contact voltage drop at 3 amps rated current. Insulation resistance is 5,000 Megohms at 500 VDC. Vectorbord\'ae Edge Card Connectors are supplied with between-contact polarizing keys. Contact plating 0.000010" gold over 0.000050"
