Siemens micromaster 3ø vector inverter #6SE3217-3DB40

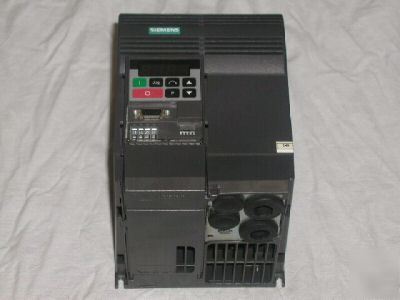

Siemens Micromaster 3Ø Vector Inverter #6SE3217-3DB40
Used equipment in excellent condition, removed from a working installation
Operating / Installation Instruction Manual is included on CD-ROM in PDF format
* The Micromaster Vector Inverter is a standard inverter with sensorless vector capability suitable fo controlling the speed of 3 phase motors.
* Sensorless vector control allows the inverter to calculate the changes required in output current and frequency in order to maintain the desired motor speed across a wide range of load conditions.
* Easy to install, program and commission.
* Overload capability 200% for 3s followed by 150% for 60s.
* High starting torque and accurate motor speed regulation by vector control.
* Fast Current Limit (FCL) for reliable, trip-free operation.
* 0 to 50°C temperature range.
* Remote control capability via RS485 serial link using the USS protocol with the ability to control up to 31 inverters via the USS protocol.
* Factory default parameters pre-programmed for European, Asian and North American requirements.
* Output frequency (and hence motor speed) can be controlled by:
* Frequency setpoint using the keypad.
* High resolution analog setpoint (voltage or current input).
* External potentiometer to control motor speed.
* 8 fixed frequencies via binary inputs.
* Motorized potentiometer function.
* Built-in DC injection brake with special Compound Braking.
* Built-in brake chopper for external resistor.
* Acceleration / deceleration times with programmable smoothing.
* Two fully programmable relay outputs (13 functions).
* One fully programmable analog output.
* Automatic recognition of 2, 4, 6, or 8 pole motors by software.
* Integral software controlled cooling fan.
* Inverter Model: MMV300/3
* Input Voltage Range: 380 - 500 VAC ±10%, 3 Phase.
* Motor Output Rating (kW/HP): 3.0 / 4
* Continuous Output @ 400V: 5.2 kVA
* Output Current (nominal): 6.8 A
* Output Current( max. continuous): 7.7 A
* Input Current (max.): 11.1 A
* Dimensions (mm): 149 x 184 x 172
* Weight (kg/lbs): 2.4 / 5.3
