.0047UF at 630V tubular axial film capacitors : qty=30
* ...Always a Money Back Guarantee

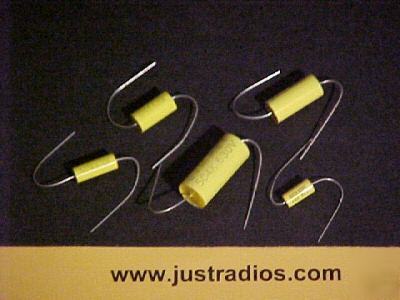

On sale are a package of thirty (30) brand new 0.0047 mfd tubular axial leaded 630 volt metalized polypropylene film capacitors. These film capacitors are constructed of premium metalized polypropylene (ISO 9001 & 9002 certified). As are all of our film capacitors, these 630 Volt capacitors are made by ISO 9002 & 9001 certified manufacturer / OEM supplier to CDE (Cornell-Dubilier).
Capacitor Features and Specifications:axial_capacitors
* Premium quality PPT Metalized Polypropylene film dielectric aluminum foil electrode construction.
* Tubular body outer wrapped with polyester film type and ends sealed with epoxy resin, in non-inductive type.
* Long (38mm) copper-pry axial leaded for easy "under chassis" installation.
* Electrode and lead spot welded, contact resistance is minimized.
* Excellent replacement for paper/wax capacitors in tube radios/amps/audio systems. Also, Telecommunication instruments, industrial electronics and general electronics equipment.
* Rated Voltage: 630 Volts DC
* Capacitance Sizes: 0.0005 uF; 0.001 uF; 0.0015 uF; 0.002 uF; 0.0022 uF, 0.0025 uF; 0.003 uF; 0.004 uF; 0.0047uF, 0.005 uF; 0.006 uF; 0.007 uF; 0.008 uF (for over 0.008uF our 630V metalized polyester capacitors are recommended)
* Excellent long term stability.
* Test Voltage: 200% of Rated Voltage for 60 sec (ie 1260 Volts for one minute)
* Operating temp. range:-40 to +85C.
* Capacitance tolerance +/- 10%.
* Stable against high frequency and change of temperature.
* Linear and slightly neg temperature coefficient.
* Dissipation Factor at 1KHz =< 1%
* Insulation Resistance: 50000 Mohm
* Low dissipation factor and high insulation resistance.
