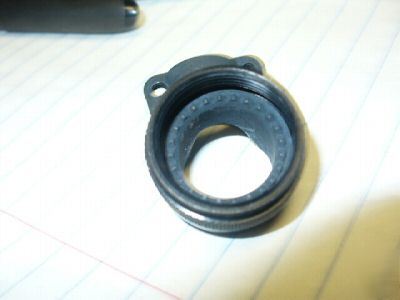

Clamp,cable,electrical connector
STYLE DESIGNATOR - 15B CLAMP, ANGLE TIE STRAP TYPE
OVERALL WIDTH - 1.279 INCHES MAXIMUM
DISTANCE FROM CENTERLINE TO CONNECTOR END - 1.450 INCHES MAXIMUM
DISTANCE FROM CENTERLINE TO CABLE END - 1.250 INCHES MAXIMUM
MOUNTING FACILITY TYPE AND QUANTITY - 1 THREADED COUPLING
THREAD SERIES DESIGNATOR - ISO M
NOMINAL THREAD SIZE - 22.0 MILLIMETERS
THREAD TOLERANCE CLASS - 6G INTERNAL
THREAD PITCH IN MILLIMETERS - 1.00
CABLE OPENING DIAMETER - 0.260 INCHES MINIMUM AND 0.457 INCHES MAXIMUM
TEST DATA DOCUMENT - 81349-MIL-C-85049 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-C-85049/39 GOVERNMENT SPECIFICATION
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-85049/39
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - M85049/39-15A
