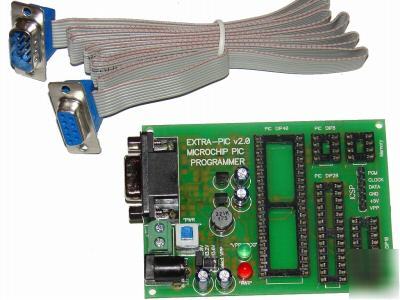

Microchip pic programmer extra-pic V2.0 with icsp
Supported devices (with program IC-PROG v1.05E or WinPIC):
12C(F)508 16C65A 16C77 16F76 16F877
12C508A 16C65B 16C710 16F77 16F877A
12C(F)509 16C66 16C711 16F737 18F242
12C509A 16C66A 16C712 16F747 18F248
12C671 16C67 16C716 16F767 18F252
12C672 16C620 16C745 16F777 18F258
12CE673 16C620A 16C765 16F83 18F442
12CE674 16C621 16C773 16F84 18F448
12F629 16C621A 16C774 16F84A 18F452
12F683 16C622 16C83 16F87 18F458
16C505 16C622A 16C84 16F88 18F1220
16C554 16C71 16F627 16F818 18F1320
16C558 16C71A 16F627A 16F819 18F2220
16C61 16C72 16F628 16F870 18F2320
16C62 16C72A 16F628A 16F871 18F4220
16C62A 16C73 16F630 16F872 18F4320
16C62B 16C73A 16F648A 16F873 18F6525
16C63 16C73B 16F676 16F873A 18F6621
16C63A 16C74 16F684 16F874 16F5x
16C64 16C74A 16F688 16F874A 10Fxxx
16C64A 16C74B 16F73 16F876 18F8525
16C65 16C76 16F74 16F876A 18F8621
18F2221 18F4221 18F2321 18F4321
18F2410 18F4410 18F2420 18F4420
18F2450 18F4450 18F2455 18F4455
18F2480 18F4480 18F2510 18F4510
18F2515 18F4515 18F2520 18F4520
18F2525 18F4525 18F2550 18F4550
18F2580 18F4580 18F2585 18F4585
18F2610 18F4610 18F2620 18F4620
The note: some of controllers are connected to programmer only through connector ICSP (non DIP package)
X24C01, 24C01A, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, AT24C128, M24C128, AT24C256, M24C256, AT24C512.
New types of devices are added in process of updating software, the managing programmer (see list of software).
Features of EXTRA-PIC v2.0 programmer:
Ø SMD technology (bottom layer)
Ø It is functionally compatible with software of JDM programmers, but unlike them, owing to the better circuit decision, and also use of the external voltage source of a feed:
· It is efficient with any COM-ports, as standard (+ /-12v; + /-10v) and with no conventional COM-ports of some models modern notebooks (they COM-port lines having reduced voltage, down to + /-5v).
· Does not overload on a current COM-port of a computer as uses the standard shaper of interface RS232 (MAX232 or similar), and at correct operation does not represent danger to COM-port (as a usual JDM programmer).
· Has a connector of an in-circuit programming (ICSP - In Circuit Serial Programming).
· Build-in DC/DC converter guarantied work in a wide range of power supply voltage (+4..+13V)
Ø It is supported by widespread programs IC-PROG, PonyProg , WinPic 800 and others JDM programs
Ø Programmer it is hooked up to COM-port of a computer, through a standard cable-extension piece of COM-port (DB9M - DB9F).
Ø Programmer need à n external power supply in range from +4V up to +13V. Programmer should use has the built in protection against wrong polarity of a supply voltage
Ø On a PCB of programmer are available:
· The LED, the showing status "PWR ON" (green)
· The LED, showing presence of VPP (red)
· 2 different connectors for external power supply
· Built in step-up DC/DC the converter that allows to use a wide band supply voltage
· The built-in +5V (VDD) voltage regulator (78L05).
· 3 jumpers, allowing to choose size of VPP (12.8V, 13.2V, 13.6V)
· connector of an in-circuit programming (ICSP).
· DIP sockets for adjustment of microcontrollers in widespread cases DIP8, DIP18, DIP28, DIP40 (microcontrollers in other cases are connected through connector ICSP).
Ø High quality PCB with green soldering mask and inscriptions
Ø The COM-port cable (it is applied in the complete set)
Power section: PWR ON/OFF button, 2 power connectors
