Motorola MC145170 pll synthesizer vhf (qty: 3 pcs)

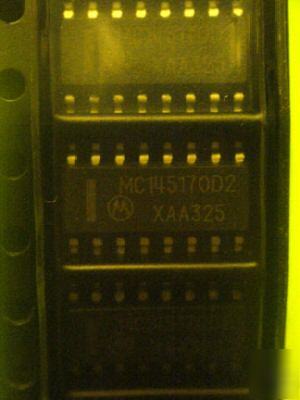

Phase Lock Loop (PLL) technology is being used to generate accurate frequency in modern advanced synthesizer. And PLL chip is then a critical component in the circuit. The MC145170D2 is a very popular PLL chip from Motorola?in the ?VHF range. Note that the MC145170D2 is the upgrade version of MC145170D1 which is also in SOG-16 package, so the D2 version is the direct replacement of D1 version. This synth chip has a three wire serial interface, consisting of data in, clock and enable.
This is getting rare in the market and I find this spares sitting in my store room, so I would be happy to let someone use it.
* 185 MHz Operating Frequency @Vin>500mVpp, >4.5V Supply
* typical current consumption 5.8mA @5V, 185MHz
* R Counter Division Range: 1 and 5 to 32,767
* N Counter Division Range: 40 to 65,535
[Item would be dispatched as "Gift" to individuals registered as private users for no tax purpose. No invoice, therefore, would be attached.]
There are numerious projects using this popular synth chip like this one.
Euro 13.59 each (~ GBP26/3pcs) by Barend Hendriksen HF Electronics
