> Pir movement detector kit, sensitive to 18 feet K30

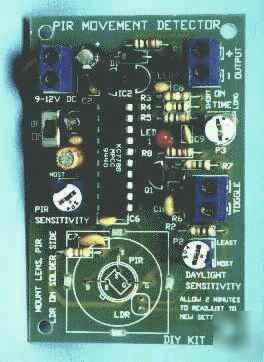

Pir movement detector kit, sensitive to 18 feet K30
can drive your own circuit for further expansion
Includes PCB and all components
RE200B PIR Sensor used in Kit 30
Essential specs on RE200B sensor
Circuit designed around a recently developed movement IC the KC778B. Circuit utilizes PIR detector and a light dependent resistor (LDR) to provide an optimized circuit that will detect motion up to 6 metres away. Operates on 9-12 VDC. Note that the PIR sensor & the PCB-mounted fresnel lens fit on the other side of the PCB; the solder side. This is to allow the unit to be mounted inside a container with the detecting lens poking out and the controls facing inside the box
DIY Electronics Kits are the most robust and well-designed kits available anywhere.
With over 160 Kits in production, they push the imits on useability, innovation, and uniqueness.
Excellent quality, flawlessly presented and documented.
US: $3.95 Canada: $5.25 International: $5.95 Lowest cost option.
1st KIT is the item with the highest S&H rate; It pays its full S&H
subsequent KITs save 60% off their S&H, for USA delivery; 40% off for International
