2 watt fp metal oxide resistor kit (84 sizes) : qty=420
* ...Always a Money Back Guarantee

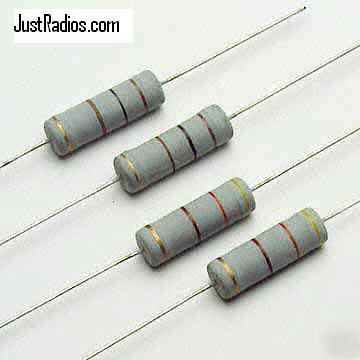

This Resistor Kit: 420 Flame-Proof 2W Metal Oxide/Carbon Film Resistors : 5% Tolerance : (5 each of all 84 sizes).
Never run short of the resistor size you need. This kit contains 420 top quality, new stock, flame-proof metal oxide/carbon film resistors. Sizes 1 ohm thru 270K are flame-proof metal oxide and 330k thru 10M ohm are flame-proof carbon film. This kit contains 5 each of all 84 often needed sizes sizes 1 ohm thru 10M ohm. These brand new factory fresh 2 watt flame-proof resistors feature: wattage of 2 Watts; tolerance: +/- 5%; operating temperature range: -55C to +155C; working voltage for flame proof metal oxide is 350V and for flame proof carbon film WV is 750V; flame proof coating; solder plated copper wire axial leads; ISO 9002 & UKAS certified and 100% RoHS compliant.
The resistors in this kit are excellent resistors for use in high power circuits such as tube radios, amps, TVs, etc.; have high stability and high reliability under diverse conditions and high temperatures....ideal for use in tube electronics. An economical, practical replacement for carbon composition resistors.
* Resistors in each kit have been specifically selected for tube radio, tube hi-fi, tube audio/guitar amplifier and tube based TV restorations.
* You get the most often needed resistor sizes in our Resistor Kits.
* All resistors are new "fresh" stock. We do not sell NOS (new old stock).
* All resistors are high voltage "normal" size body type. We do not stock the cheaper, low voltage "small" body type.
* For added safety, all resistors in our 1 Watt, 2 Watt and 5 Watt Kits are "flame proof" resistors.
* Free heat-shrink / spaghetti tubing with each resistor kit.
* MONEY BACK GUARANTEE on all Capacitor Kits.
* All resistors are ISO Certified and 100% RoHS compliant .
note: K = Kohm = 1000 ohms and M = Mohm = 1,000,000 Ohms
Resistors Included in Resistor Kit
: 420 Metal Oxide / Carbon Film
2 Watt (Flame Proof) Resistors
Never run out of the ohm size you need. These 2W resistors can be used to replace 1/2W, 1W & 2W resistors. This kit contains 420 high quality flame-proof metal oxide / carbon film resistors .... 5 each of all eighty-four (84) sizes 1 ohm thru 10M ohm..
Construction: Resistance element is formed by the oxidation reaction of a vapor or spray of tin chloride or tin-oxide film over a high thermal conductive rod. A flame proof coating is then applied. Total length of each 2 watt resistor is 80mm with body size 5mm by 15mm. *330K and over are flame-proof carbon film type.
* Wattage: 2 Watt (Can be used to replace 1/2W, 1W and 2W resistors).
* Operating Temperature Range: -55C to +155C
* Working Voltage: For Metal Oxide working voltage is 350V with maximum overload voltage of 800V. For carbon film the working voltage is 750V with overload voltage of 1500V.
* Excellent resistor for use in high power circuits.
* High stability, superior resistance to heat and high reliability in high voltage applications. Ideal for use in tube radio, amp, TV electronics.
* A popular and economical replacement for old carbon composition resistors.
* Solder plated copper wire axial leads.
* ISO 9002 & UKAS certified and 100% RoHS compliant.
420 Flame Proof 2 Watt Resistors
(5 each of 84 sizes: 1 ohm thru 10 Meg ohm)
* 5 each of all of the following eighty-five (84) ohm values:
10K ohm, 12K ohm, 15K ohm,
18K ohm, 22K ohm, 27K ohm,
33K ohm, 39K ohm, 47K ohm,
56K ohm, 68K ohm, 82K ohm,
8.2M ohm & 10M ohm all at 2 Watt.
* 8 feet of spaghetti tubing
Do you need fewer or differtent sizes of resistors than are in the above resistor kit? JustRadios carries a full line of resistors for tube electronics, including; carbon composition, metal ozide, carbon film, metal film, metal glaze and power resistors. If you have a resistor requirement ...feel free to email us at ****@yahoo.com
