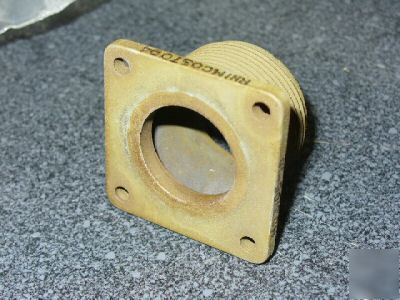

Dummy connector,receptacle
BODY STYLE - 1G STRAIGHT SHAPE, EXTERNAL COUPLING
OVERALL LENGTH - 0.844 INCHES MINIMUM AND 0.984 INCHES MAXIMUM
OVERALL HEIGHT - 1.375 INCHES NOMINAL
OVERALL WIDTH - 1.375 INCHES NOMINAL
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT - 1.062 INCHES NOMINAL
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH - 1.062 INCHES NOMINAL
DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE - 0.750 INCHES MINIMUM AND 0.781 INCHES MAXIMUM
UNTHREADED MOUNTING HOLE DIAMETER - 0.115 INCHES MINIMUM AND 0.130 INCHES MAXIMUM
CONNECTOR LOCKING METHOD - EXTERNALLY THREADED SHELL
THREADED DEVICE TYPE - COUPLING FACILITY
THREAD SERIES DESIGNATOR - UNEF
NOMINAL THREAD SIZE - 1.125 INCHES
NOMINAL THREAD LENGTH - 0.625 INCHES
SHELL MATERIAL - ALUMINUM ALLOY
SHELL SURFACE TREATMENT - CADMIUM
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION - QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE
CONTACT POSITION ARRANGEMENT STYLE - ABDB NONSTD SINGLE MATING END
INCLUDED CONTACT QUANTITY - 0 SINGLE MATING END SINGLE CONTACT GROUPING
TEST DATA DOCUMENT - 81349-MIL-C-5015 SPECIFICATION
SPECIFICATION/STANDARD DATA - 96906-MS3105 GOVERNMENT STANDARD
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-C-5015
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MS3105-18
