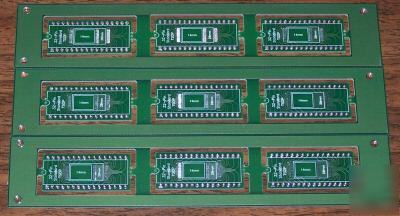

Lot of 9- 32 pin dip to 32 pin tsop adapter
Break each board out of the panel individually, solder your tsop device and start bread boarding.
These PCB adapter converts 14.0mm or 20.0mm TSOP SMT packages to a 600-mil DIP.
DIP pin 1 is connected to TSOP pin 9 and DIP pin 32 is connected to TSOP pin 8.
This is called wiring one-to-one because TSOP package on this adapter can be plugged directly into a DIP socket for the same chip in a DIP package.
