Hp agilent 58516A gps 4-way distribution amplifier

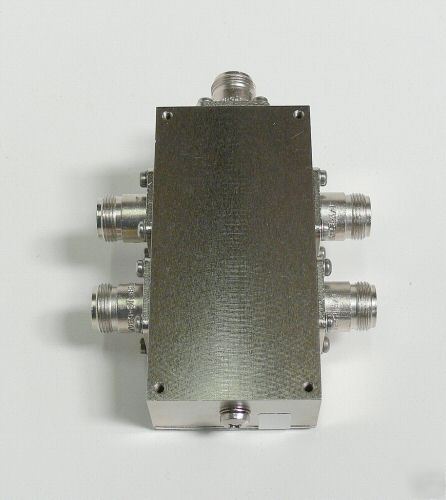

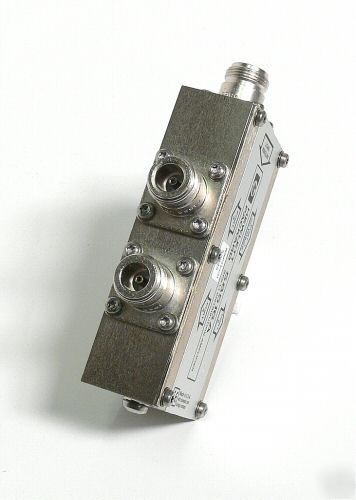

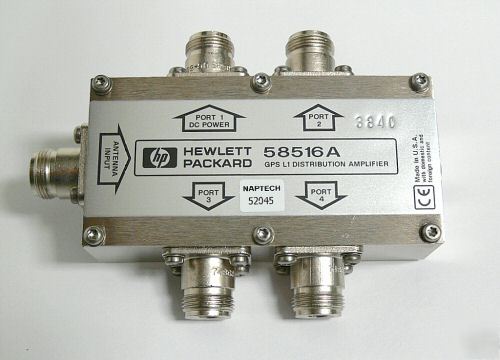

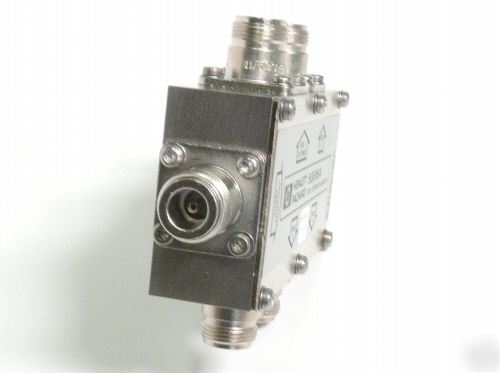

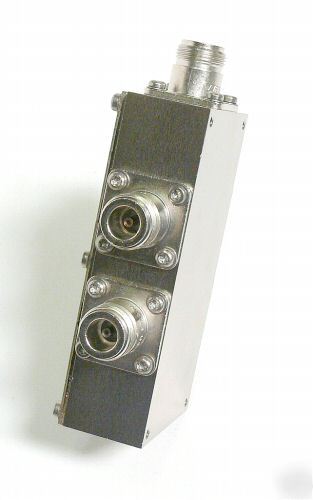

HP Agilent 58516A GPS 4-way Distribution Amplifier
* Frequency bandwidth (3dB): 1575.42 MHz +/- 20 MHz
* Gain (antenna to output): 0 dB +/- 3dB @ 1575.42 MHz
* Noise figure: < 7.0 dB (5.0 dB typical) @ 1575.42 MHz
* VSWR: < 2.5:1 (1.5:1 typical) @ 1575.42 MHz
* Isolation > 40 dB @ 1575.42 MHz (L1)
* Operating voltage, port 1: + 4.5Vdc to + 30Vdc
* Operating current, port 1: 10 mA
* Max input current, port 1: 450 mA
* Ports 2 through 4 are terminated with a 200 ohm resistor to simulate the load of a GPS antenna.
* AC input level (antenna signal), Impedance: 50 ohm, nominal
* AC input level (antenna signal), Maximum Operating: -25 dBm
* AC input level (antenna signal), Damage Level: +13 dBm
Accessories included: Original Manufacturer's Information Literature: Description; Installation Instructions; Recommended Maintenance; Specifiations.
Guaranteed to be clean and fully operational, with 14-day right of return.
About us: For 15 years Naptech has sold many thousands of pieces of test equipment to thousands of companies including to Government Contractors. We have five full-time engineers to ensure every instrument we supply performs reliably and to full manufacturer's specs. Naptech has a reputation for providing quality equipment at a reasonable price
Thanks for viewing our listing.
