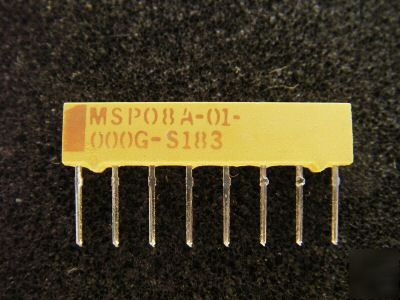

resistor network, MSP08A-01-000G, zero ohm, 1W,2%,100V
Military, Thick Film Resistor Network. Single In-Line Package (SIP). Highly Stable.
This part contains 7 resistors (jumper wires in this case) each connected between a common pin (Pin 1) and one of the other 7 pins.
Common uses are: "Wired OR" pull-up, Power Gate pull-up, TTL Input pull-down, MOS/ROM pull-up or pull-down, Open Collector pull-up, TTL Unused Gate pull-up.
8-Pin SIP, Leads are 0.135 inches long and spaced 0.1 inches on center.
Resistors are new and unused. New-Old-Stock.
