MC68HC912/9S12 eeprom/flash motolora programmer

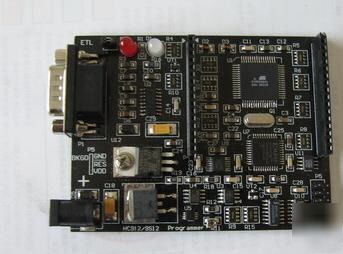

The MC68HC912/9S12 programmer supports Motorola MC68HC912xx, MC9S12xx microcontrollers internal EEPROM and FLASH reading/programming. This MCU most used in automotive computers (dashboards, AIRBAG, immobilizers), and industrial products. A serial port interface (COM1... COM9) connects the programmer to any desktop or laptop PC running Windows 98/NT/XP.
The MC68HC912/9S12 programmer Windows based software makes programming simple. Programmer has 2 interfaces: In-circuit and On-Board. In-circuit programming interface designed to allow fast access to MCU EEPROM and FLASH resources. In this mode programmer automatically detects target MCU bus speed. On-Board programming interface is intended for full access to EEPROM/FLASH resources even if target MCU secured or BDM locked. Also EEPROM/FLASH erase/programming protection are take off. The Device Menu displays all available functions to perform on the device (read, program, verify, etc...). The MC68HC912/9S12 programmer can process 2 popular file formats - Motorola S-record and binary. A full screen editor is provided to view or edit any address of the programming buffer in binary or ASCII formats.
