Isoverter ii model 4380 from love controls

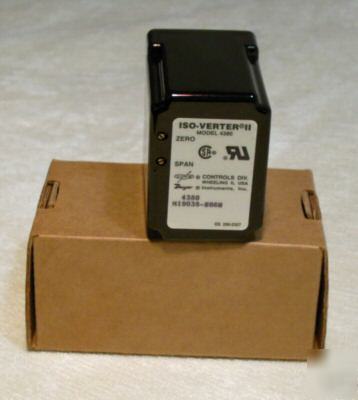

IsoVerter II model 4380 Process Signal Converter/Isolator
Protects electronic circuits by completely isolating the input and output signals from each other and from ground.
Both input and output ranges are fully field selectable with easy to adjust switches.
Accepts virtually all standard process signals as an input, and isolates and retransmits the signal in either the same units or virtually any other standard process signal.

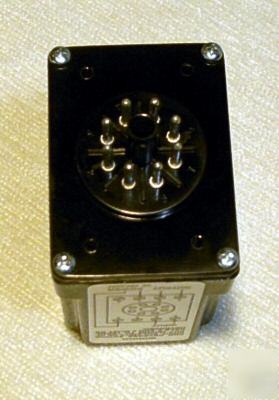

Mounts on industry standard 8 contact octal socket.
Drift: ±0.02%/°C typical; ±0.05%/°C maximum
Ambient operating temperature: 32 to 131°F (0 to 55°C)
Output loads: Current; 600 ohms maximum; Voltage: 500 ohms minimum (20 mA maximum).
Input Impedance: Current: 10 ohms; Voltage: 1 megohm.
Power Supply: 85-265 VDC/VAC, 50-400 Hz.

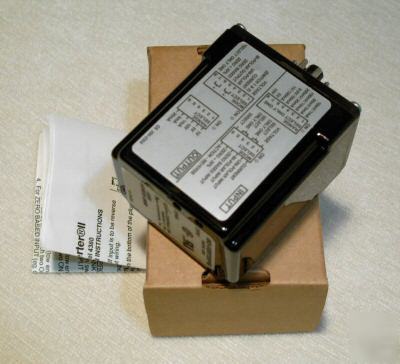

These units are NEW IN BOX and come with installation instruction leaflet. Boxes have blemish where sealing tape was removed, but units are perfect. Comparable list price: $212.50 each.
