Allen bradley kinetix ac servo motor mpl-B330P-HK24AA

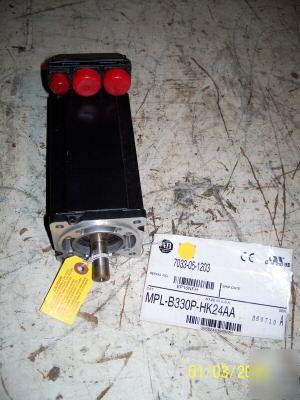

New Allen Bradley Kinetix AC Servo Motors.

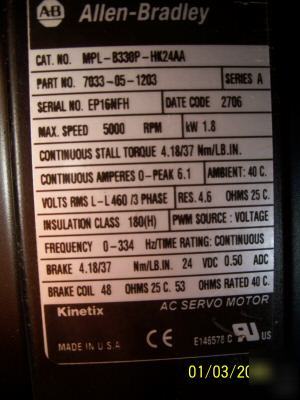

Cat no: MPL-B330P-HK24AA Part no: 7033-05-1203 Series: A
I have two available; S/N: EP16NFH and EP17FST Date Code: 2706 and 3906 Let me know which one(s) you want.
Max Speed: 5000 rpm KW: 1.8 Continuous Stall Torque: 4.18/37 Nm/Lb.In.
Continuous Amperes: 0-peak 6.1 Amb 40 deg C
Volts RMS L-L460/ 3 phase Res. 4.6 Ohms 25 C
Ins. Class 180 (H) PWM source: voltage Frequency 0-334 Hz/ Time rating continuous
Brake 4.18/37 Nm/Lb.In. 24 VDC 0.50 ADC
Brake coil 48 Ohms 25 C.53 Ohms rated 40 C
