Brother motor - 24V - 40 oz-in - 1500RPM - optical tach
Powerful Brother Motor - 24VDC - 40 oz-in - 1500 RPM - Optical Tachometer
* Brand new permanent magnet DC motor
* Manufactured by Brother Industries
* Full load torque: 40 oz-in
* Full load current: 2.8 Amperes
* Motor can run in either direction, simply reverse polarity of wires
* Section 1: .70" L x .235" Diameter with a removable cog pulley installed
* Section 2: .25" L x .312" Diameter
* Motor dimensions (not including shaft or optical tachometer): 4.25" L x 2.3" Diameter
* Optical tachometer dimensions: .85" L x 2.43" W x 1.62" H
* Optical tachometer specifications:
* 200 pulses per revolution into two channels
* A and B channels output a sine wave - .5 V pk-pk
* Additional index output of one pulse per revolution - .7 V pk pulse
* Optical tachometer requires +5 to +9 VDC, 20 mA and -5 to -9 VDC, 20 mA power supply
* 6 pin connector (connector cable is included)
* Please note that the operation of tachometer is optional - motor will fully function without using the tachometer
* Motor comes with 5" long power leads with terminals
* Constructed using Japanese ball bearings
* 4 tapped 3.5mm diameter holes in motor’s face for easy mounting
* Motor weight: Approximately 2 pounds
* For optical tachometer specifications, please click this LINK (PDF - 45 KB)

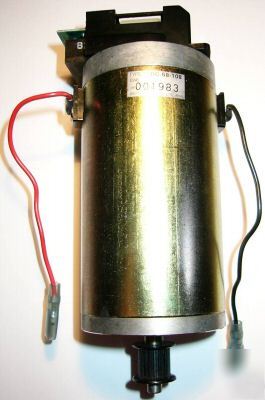

For closer detail of the motor, please click on the pictures below.
