Siemens – CP1430 tcp - communication module simatic it
Photo Sharing and Video Hosting at Photobucket

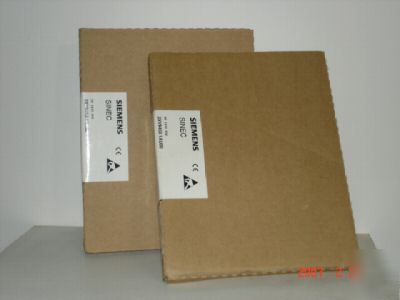

The item is new in box, in mint conditions, factory sealed;
Made in Germany, original packing;
Retail price is approx. US$ 3,850.00;
There are two (02) pieces available (!).

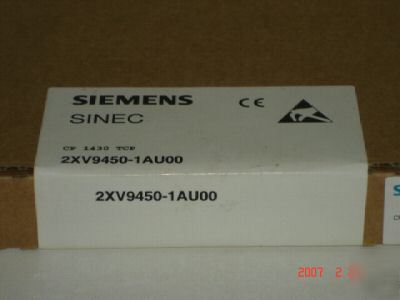

Siemens Simatic 2XV9 450-1AU00
- S5-compatible communication (SEND/RECEIVE and FETCH/WRITE)
· Integrated industrial twisted pair transceiver;
· Remote programming is possible through the network;
· Networking is possible through WAN through TCP/IP.
Photo Sharing and Video Hosting at Photobucket
· Direct integration of SIMATIC S5 also in complex systems using Industrial Ethernet;
· Flexible application due to automatic media switching (AUI/ITP);
· One module for various applications: Programming device/PC, HMI systems, SIMATIC S5/S7;
· Data is accessible from any site location, since TCP/IP permits communication over the entire network;
· Fast commissioning through simple configuration;
· Remote programming through Industrial Ethernet.
· The CP 1430 TCP is directly plugged into the SIMATIC S5 and requires a single-width slot;
· Double-height European format;
· 15-pole Sub D socket for connecting the bus to Industrial Ethernet; automatic changeover between AUI interface and Industrial Twisted Pair interface;
· Programming device interface:
15-pin Sub D socket for connection to SIMATIC S5 programming devices.
· The module can be operated without a fan. An adapter casing is required in the S5-115U;
· The 15 V supply voltage for the AUI transceiver is generated on the module from the 5 V output from the programmable controller (a 15 V module is not necessary).
Photo Sharing and Video Hosting at Photobucket
The CP 1430 TCP independently handles data traffic through Industrial Ethernet;
Layers 1 to 4 correspond to international standards. Protocol versions TCP (transmission control protocol RFC 793 with RFC 1006) and UDP (user datagram protocol, RFC 768) are supported for the user.
Remote configuring of the CP 1430 TCP and remote programming of the CPU over the network are possible. Local test and diagnostic functions which can be executed through the network.
S5-compatible communication (SEND/RECEIVE and FETCH/WRITE)
With TCP/IP, SEND/RECEIVE is also possible without RFC 1006 for communication through the partner’s socket interface.
Parameters are assigned to the CP 1430 TCP with the COM 1430 TCP configuration software.
CP 1430 TCP technical specifications
· Of which configuration data require
· Connection to Industrial Ethernet
15-pin Sub-D socket with slide latch (auto changeover between AUI or industrial twisted pair)
15-pin Sub-D connector with screw latch
+5 V DC ± 5%: +24 V DC +25%/-15%
Max. 3 A at rated load of 0.5 A/ transc.
Perm. environmental conditions
· Transport/storage temperature
· Dimensions (W x H x D) in mm
Possible in S5-115U PLC, adapter casing required
Performance data S5-compatible communication (SEND/RECEIVE and FETCH/WRITE)
Number of operable TCP transport connections
Photo Sharing and Video Hosting at Photobucket
United States: US$ 23.00 Priority Mail / US$ 44.00 EMS
Europe: US$ 25.00 Priority Mail / US$ 52.00 EMS
Australia: US$ 37.00 Priority Mail / US$ 65.00 EMS
Canada: US$ 23.00 Priority Mail / US4 44.00 EMS
Japan: US$ 37.00 Priority Mail / US$ 65.00 EMS
Others: please e-mail us at bra-****@hotmail.com for S&H quotation.
We encourage you to ask any further questions not covered by this add.
Please e-mail us at bra-****@hotmal.com
