Pcb fabrication/prototyping service.us$0.19PER sq.in.

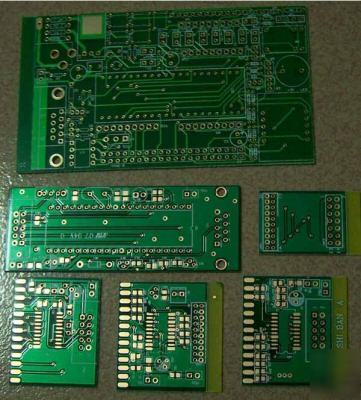

PCB Fabrication/Prototyping Service
- Produced by ISO9002 certified PCB manufacturer in China. High quality is guaranteed( RoHS and UL compliant boards are offered ).
- Low cost. Only $0.99 per square inch for 4-Layers boards prototyping and quantity discount will be given for all kinds of boards when total fabrication area exceeds 60 square inch.
Pricing formula for fabrication: SetupFee + (UnitPriceForPerSquareInch x NumberOfBoards x AreaInSquareInches) - QuantityDiscount + Postage
- Tracking information offered. http:// Easily know what is going on with your order at any time.
- Specifications of Prototyping:
Board thinckness:0.016"-0.078"(0.4mm-2.0mm) for double sided boards(Send email for thinckness information of boards in other layers)
Size: less than 21.25"x29.13"(540x 740mm)
Min Trace/Space: 6 mil (0.15 mm)
Min finished hole size:12mil (0.3mm)
Surface finish: HASL, OSP, immersion gold, gold plating, gold finger
Silk color: White, Black, Yellow
Solder Mask: Green, Yellow, Bloack, Blue, Red.White
Multiple designs on a single board: permit , free V-cut
Lead time: 5, 7, 10 workdays options
- Specifications of Quantity Fabrication:
Material type: FR4, CEM-1 , CEM-3
Board thinckness:2-layer 0.4mm-6.0mm
Copper thickness: min 12um(1/3oz) 4-layer 0.8mm-8.0mm max 140um(4oz)for inner layer 350um(10oz)for outer layer
Min Trace/Space: 5 mil ( 0.127 mm )
Via hole type: Blind/Buried/Plugged
Max panel size: 21.25"x29.13" (540x 740mm)
Silk color: White, Black, Yellow
Mask color: Green, Yellow, Bloack, Blue, Red.White
Surface finish: HASL, OSP, immersion gold, gold plating, gold finger
- No minimum order but great discount for large quantity.
- Send the gerber file, NC drill files and your requirements to ****@gmail.com .
- You can track your order from our web site http:// to get information about what is going on with your order.
-We now also offer a standard prototyping service. You can get 6 pieces of single sided boards or 3 pieces of double sided boards for only $39. If you want more, only$1.1 per piece for single sided boards and $1.5 per piece for double sided boards. Go to our web site for more information...
-Assembling Service is also offered by us.Please send email for more information.
