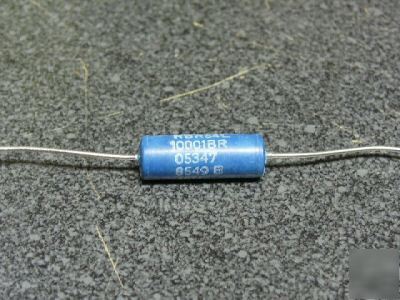

Resistor,fixed,wire wound,noninductive
ELECTRICAL RESISTANCE - 10.000 KILOHMS
RESISTANCE TOLERANCE IN PERCENT - -0.100 TO 0.100
POWER DISSIPATION RATING IN WATTS - 0.250 FREE AIR
AMBIENT TEMP IN DEG CELSIUS AT FULL RATED POWER - 125.0
AMBIENT TEMP IN DEG CELSIUS AT ZERO PERCENT RATED POWER - 145.0
TEMP COEFFICIENT OF RESISTANCE IN PPM PER DEG CELSIUS - -10.0 TO 10.0
TEMP RANGE OF TEMP COEFFICIENT IN DEG CELSIUS - -65.0 TO 145.0
INCLOSURE METHOD - ENCAPSULATED
STYLE DESIGNATOR - 14 AXIAL TERMINAL EACH END
BODY DIAMETER - 0.235 INCHES MINIMUM AND 0.265 INCHES MAXIMUM
BODY LENGTH - 0.718 INCHES MINIMUM AND 0.770 INCHES MAXIMUM
RELIABILITY INDICATOR - ESTABLISHED
RELIABILITY FAILURE RATE LEVEL IN PERCENT - 0.010
TERMINAL LENGTH - 1.500 INCHES MINIMUM
TEST DATA DOCUMENT - 81349-MIL-R-39005 SPECIFICATION
SPECIFICATION/STANDARD DATA - 81349-MIL-R-39005/3 GOVERNMENT SPECIFICATION
III UNPACKAGED UNIT WEIGHT - 2.5 GRAMS
(NON-CORE DATA) CUBIC MEASURE - 0.042 CUBIC INCHES
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - MIL-R-39005/3
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE - RBR54L10001BR
