Varian vacuum fitting machined stainless steel w/ brass
(1) VARIAN VACUUM FITTING MACHINED STAINLESS STEEL
THREADED BRASS KNURLED COMPRESSION FITTING OTHER END
This fitting looks new but did not come with any original packaging. The Item simply states that it is Varian, and does not come with a part number or functional description.

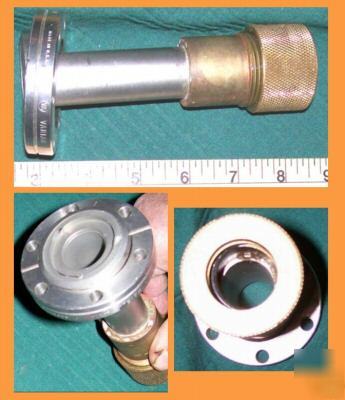

With the brass knurled end screwed all the way down, overall length is 5-1/4". Knurled part is 1-3/4" diameter, with a 1" hole. On stainless steel machined end, the outer loose flange is 2-3/4" diameter with 6 holes, 1/4" dia each, evenly spaced. This flange fits over a smaller flange, which is part of the tube. The tube flange is 1-15/16" dia. Tube hole is 15/16" dia, which is recessed from the flange bottom by about 1/8".
Item has some minor damage. On the flange and at the flange end of the tube part, there are several small gouges in the metal. It appears that the fitting was dropped from a height and hit a piece of metal on the way down. However, it appears that with minor filing / machining and/or with the application of a gasket and/or sealant, fitting should be perfectly usable. I am selling it for about 10% of what this device cost new from what I have been told, so you are getting it for a real bargain.
NOTE: Later availability not guaranteed. LIMITED QUANTITY.
Seller listing codes: LD098, LR000-S00, LS000-R00, MM000, CC000.
