Purple beam laser pointer blue violet diode module :o)


UNBELIEVABLE!!! THE WORLD'S SMALLEST VIOLET BEAM LASER POINTER MODULE!!! This ultra compact laser runs on only ONE SINGLE AAA battery yet produces a ROYAL PURPLE LASER beam that CAN BE SEEN OVER 100 YARDS! The laser unit is based on state-of-the-art technology for the most demanding applications in scientific research. I managed to get a supply of these extremely RARE Laser diodes that are worth nearly US $2K EACH and put them in these unique laser modules!
A comparable violet laser device is selling for upwards of $2,000 USD! My module has several features that make it more powerful and user friendly than even that one! These features such as REVERSE POLARITY PROTECTION, high reliability switch, ultra compact size, runs off of only 1 cheap AAA battery, laser diode significantly under driven for a nice long life, and the ability to have either intermittent or constant operation! While the diode in this module is capable of 18+ mW, it is run at a more modest 4-5mW so it falls under class III-a legal status AND so it will last you for many years of service. Here are the features of this wonderful gadget!
Laser Diode: GaAlInN, MQW gain guided, multi mode
Lasing wavelength: 404-407nm, 405nm typical (Royal purple-Violet Color)
Optical power throughput: 3 to 5mW
Est. Diode Lifetime: 20,000+ hours at 5mW
Focus: Fixed at infinity, collimated
Operating current draw: 180-200mA
Battery lifetime: Standard Zinc, 1HR, Alkaline 4Hr, E-2 Ti 8Hrs. E2-Li not recommended
Power source: 1 x AAA battery (LR-03 int'l) Alkaline recommended!
Reverse polarity protection: YES! :-)
Housing: Machined aircraft aluminum, RED BLUE or SILVER anodized.
Water Resistant to light rain or momentary splashes.
Power switch: Lock-out, Momentary ON- ADJUSTABLE SENSITIVITY, Constant ON

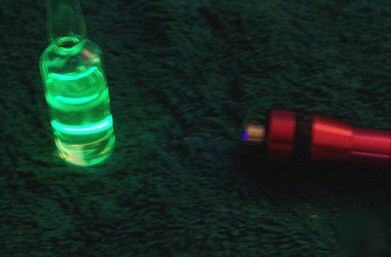

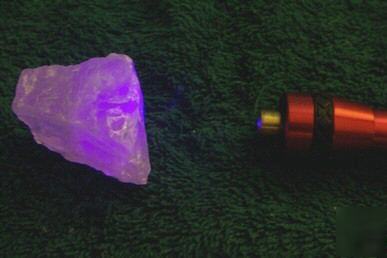

It can be used as a Florescence microscopy LASER SOURCE, an alignment or general purpose pointing laser, Spectroscopy, Testing Diamonds and gemstones (YES IT FINDS SYNTHETIC DIAMONDS and RUBY!!!), Tack-welding photosensitive glues, and countless other uses!
You Are over 18 and know the potential hazards inherent in high power laser equipment.
You WILL use this device in a safe and sane manner for a legal purpose
