Altronix AL600ULX grey locking power supply box pfs

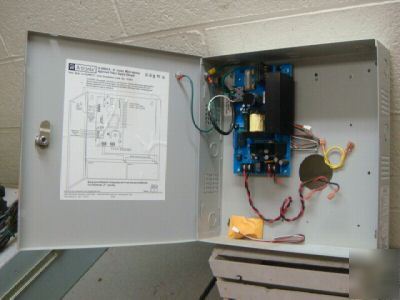

Altronix AL600ULX Power Supply and Charger 12 24
Model AL600ULX power supply/charger converts a 115VAC 60Hz input, to a 6 amp of continuous supply current @ 12VDC or 24VDC non-power limited output.
• UL Listed for Access Control Systems (UL294),
Power Supplies for Fire Protective Signaling Systems (UL1481),
CUL Listed - CSA Standard C22.2 No.205-M1983, Signal Equipment.
• CSFM - California State Fire Marshal Approved.
• MEA - NYC Department of Buildings Approved.
• 12VDC or 24VDC selectable output.
• 6 amp of continuous supply current.
• Filtered and electronically regulated outputs.
• Short circuit and thermal overload protection.
• Built-in charger for sealed lead acid or gel type battery backup.
• Maximum charge current .7 amp.
• Zero voltage drop upon transfer to battery backup.
• AC input and DC output LED indicators.
• AC fail supervision (form "C" contact rated @ 1 amp 28VDC).
• Low battery and battery presence supervision (form "C" contact rated @ 1 amp 28VDC).
• Accommodates up to two (2) 12VDC/7AH batteries.
• Dimensions: 13.5â€H x 13â€W x 3.25â€D.
• 1/2" and 3/4" combination knockouts.
We have many other Pro equipment and CCTV items available, please see our postings.
These are pulled from service; the company closed and no longer had a need for this
If you have any questions please email us.
