Nema-23 aluminum motor mounts (3), heavy duty, cnc mill


-Mount Plates are CNC Machined from 1/2" thick 6061-T6 Aluminum.
-Standoffs are made of 6061-T6 aluminum as well.
-Built-In Thrust Bearings are 1/4" ID flanged bearings mounted back to back. This mounting system automatically provides accurate shaft alignment from the motor to the lead screw.
-Motor mount size is 2.5" x 3" x 4.62". The mounting holes are (4) 9/32" diameter and are located on 1.860" centers.

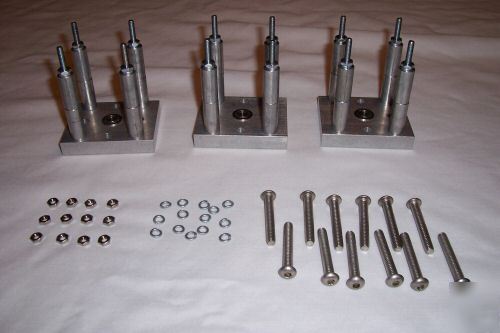

-Motor mounts come with (12) lock washers, (12) special S.S. motor mounting nuts, and (12) 1/4-20 x 2" S.S. Button Head Screws for the mounting of your stepper/servo.
-These mounts are in stock and ready to deliver!
-These are industrial grade heavy-duty motor mounts!
-You can adjust the length of your standoff distance by changing the number of standoffs to fit your custom application!
-Simple open design makes assembly and installation easy.

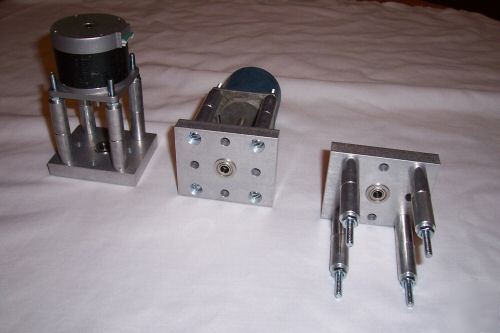

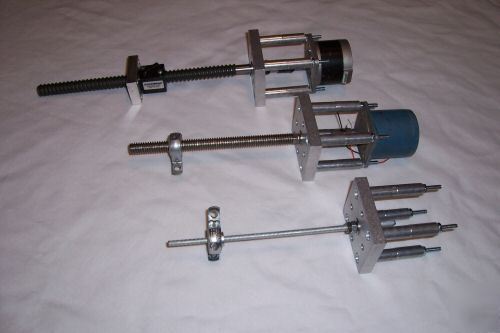

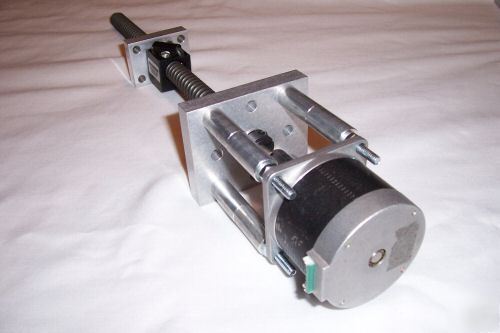

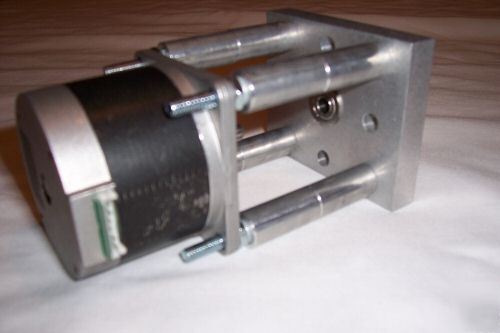

-PLEASE SEE THE PHOTOS FOR VARIOUS LEAD SCREW APPLICATIONS. PICTURES SHOW 1/4-20, 1/2-10 ACME, AND 5/8 OD BALL SCREW.
-For more information about these components please visit .
Please email with any questions you may have.
