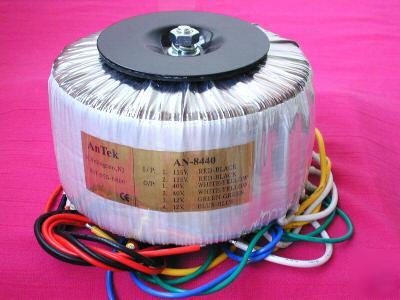

80V /40V 800VA toroid, toroidal power transformer hifi


Open Circuit Test (core loss test):
TEST CONDITION: Apply variable voltage to primary coil (115V terminals) from 115-180VAC at 60Hz. No load on secondary coils.
1. Primary V = 115VAC, Primary I = .03A or core loss is 3.4Watt.
2. Primary V = 140VAC, Primary I = .03A
3. Primary V = 160VAC, Primary I = .05A
4. Primary V = 180VAC, Primary I = .08A
Short Circuit Test (copper loss test):
TEST CONDITION: Apply variable voltage to primary coil (115V terminals) from 1-20VAC at 60Hz and short circuit on secondary coils and test the primary voltage and current. The result is 8.1V and 7A or 56.7Watt which is the maximum rated copper loss
TEST CONDITION: Apply dielectric meter between primary coils and secondary coils; and increase voltage up to 3500VAC. No initiate any spark.
TEST CONDITION: Input 115VAC 60Hz to the primary coil; parallel 2 secondary coils, 5 ohm 250W resistors as dummy load and room temperature at 25 degree C. Temperature rises 5 degree C after an hour test at load test #5.
1. Primary I = 0.03A, Secondary V = 39.6VAC at 0.0A, Power = 0 Watt
2. Primary I = 1.41A, Secondary V = 39.1VAC at 3.90A, Power = 153 Watt
3. Primary I = 2.83A, Secondary V = 38.6VAC at 7.71A, Power = 297 Watt
4. Primary I = 5.45A, Secondary V = 37.6VAC at 15.03A, Power = 565 Watt
5. Primary I = 7.90A, Secondary V = 36.5VAC at 21.91A, Power = 800 Watt
Dimension – 5.5” Diameter x 3.5” High.
If you have more technical questions, please visit toroid-transformer.com or e-mail to ****@yahoo.com.
