3IN1 dsp cpld mcu demonstration board ti altera atmel

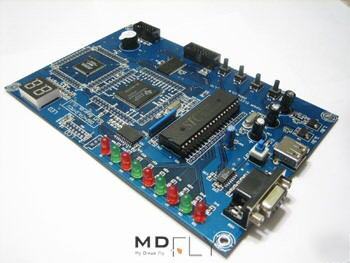

Enhanced 3 IN 1 DSP CPLD MCU Demonstration/Evaluation Board
MDfly presents a brand new 3 IN 1 DSP CPLC and MCU processor demonstration/evaluation board. This board is designed to be used with the Digital Signal Processors (DSP, with JTAG interface for DSP emulator) , CPLD (wiht CPLD download interface) and MCU(download code via serial port). Do all of the experiments at one time.
* DSP Processor: TI TMS320VC5402.
* Built-in JTAG interface, supports most of the DSP Emulator.
* CPLD Processor: ALTERA EPM7128STC100.
* Built-in CPLD JTAG interface.
* MCU: STC89C52RC with 51 core (compatible with ATMEL AT89S52 microcontroller).
* Built-in RS232 port, 8 LEDs, 7 segment LED, 1 buzzer and 4 Buttons for on-board experiments.
* USB bus power supply with two voltage regulators and power switch.
* All I/O expansion for other usage.
* High quality two-layer PCB.
* All Sample code are provided.
Appearance: Fully Assembled PCB Board
Original Packaging: MDfly original packaging.
One 3 IN 1 DSP CPLD MCU Board.
One RS232 Serial Connection Cable.
One CD includes Related Datasheets, Schematics and Sample Code.
