Fox F4105 60MHZ 3.3V hcmos smt crystal oscillator 100PC
60MHz 3.3V HCMOS X'TAL OSCILLATOR
SERIES: F4105 / FREQ: 60.00MHz

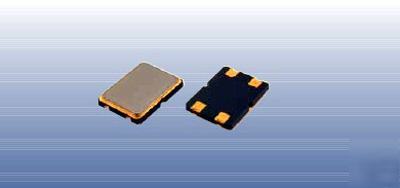

SMT CERAMIC PKG 7.5 X 5.0 X 1.5MM IN SIZE
CERAMIC BASE, GOLD MOUNTING PADS, HERMETIC METAL TOP
BRAND NEW PARTS WHICH COME ON TAPE AS REMOVED FROM REEL
SELLING 15EA 100PC LOTS INDIVIDUALY!
Image Hosted by VDB Engineering Inc. http:// .com
MOUSER ELECTRONIC'S SELL'S THIS SAME SERIES OF OSCILLATOR FOR $7.14 EACH!
UP FOR SALE HERE IN MY STORE ARE 15EA 100PC LOTS OF A 60MHz +/-50PPM STABILITY 7.5mm X 5.0mm X 1.5MM TALL SMT CRYSTAL OSCILLATOR.
THEY ARE STANDARD 3.3V HCMOS SMT CRYSTAL OSCILLATORS WITH ENABLE MNF'D BY THE FOX ELECTRONICS CORPORATION. IT'S EXACT MODEL
NUMBER IS F4105/60/B/E/0/Z AND THEY ARE PRETTY SMALL BUT STILL VERY EASY TO USE AND SOLDER DOWN TO YOUR PCB. IT'S ENABLE PIN CAN
BE CONNECTED DIRECTLY TO VCC IS NOT USED.
THESE OSCILLATORS WERE BOUGHT BY ME FOR USE WITH A 500MSPS DDS CHIP THAT HAS AN INTERNAL 8X MULTIPLIER SO THE FINAL REFERENCE
CLOCK FREQUENCY ENDS UP BEING 480MHz. THEY CAN ALSO BE USED AT 1X WITH OTHER LOWER MSPS DDS CHIPS. IT'S ENABLE PIN IS TIED HIGH
USING A CURRENT LIMITING RESISTOR TO KEEP IT ON ALL THE TIME ELSE IT IS PULLED LOW TO DISABLE AND HIGH TO ENABLE THE OSCILLATOR'S
THANKS FOR LOOKING AND GOOD LUCK!
