Hioki 3541 resistance milli-ohmmeter
"Your One Stop Source for Sales & Calibration of Test & Measurement Equipiment"

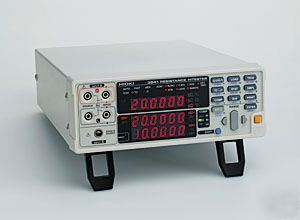

*HIOKI 3541 Resistance Milli-Ohmmeter*
0.1 µ?(20 m? range) to 110.000 M?
High Speed & High Precision Measurements
As fast as 0.6 ms with 70 ppm precision (in the 2 k? to 110 k? range)
Two Types of Temperature Correction
Correction by Pt sensor or infrared thermometer
Equipped with EXT I/O, GP-IB and RS-232C interfaces
Easily integrates into automated production lines
Measurement Four-terminal resistance measurement
0.1µ?(20 m? range) to 110.000 M?
Low power four-terminal resistance measurement
Temperature measurement (Pt) -10.0 to 99.9°C
Temperature measurement (analog) 0 to 2V
Accuracy 70ppm of rdg ±15ppm of f.s.(2k?.20k? range slow ?)
Functions Temperature correction, temperature conversion,
self calibration, measurement fault detection,
overflow detection, offset voltage compensation,
average, statistical calculation, key lock, save/load,
Interface GP-IB, RS-232C, EXT-I/O
Power supply 100 to 240 V, AC 50/60 Hz
Dimensions, mass Approx. 215 mm(8.46 in)W × 80 mm (3.15 in)H × 295 mm(11.61 in)D,
Accessories CLIP TYPE LEAD 9287 (1), TEMPERATURE PROBE 9451 (1),
Power Cord(1), EXT I/O Male Connector(1)
GOODS: ALL our items are FACTORY NEW
